TB-07-S01

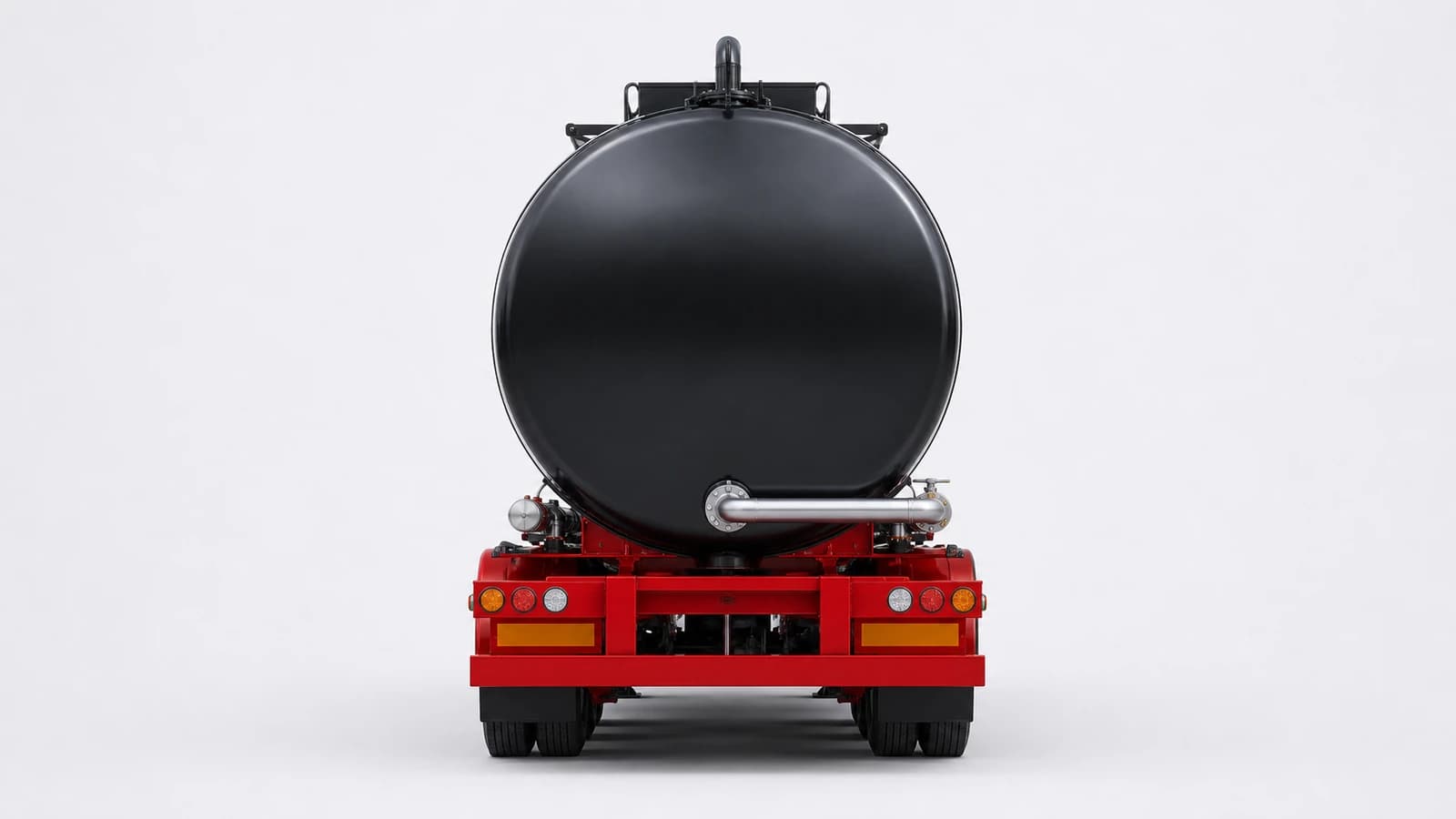

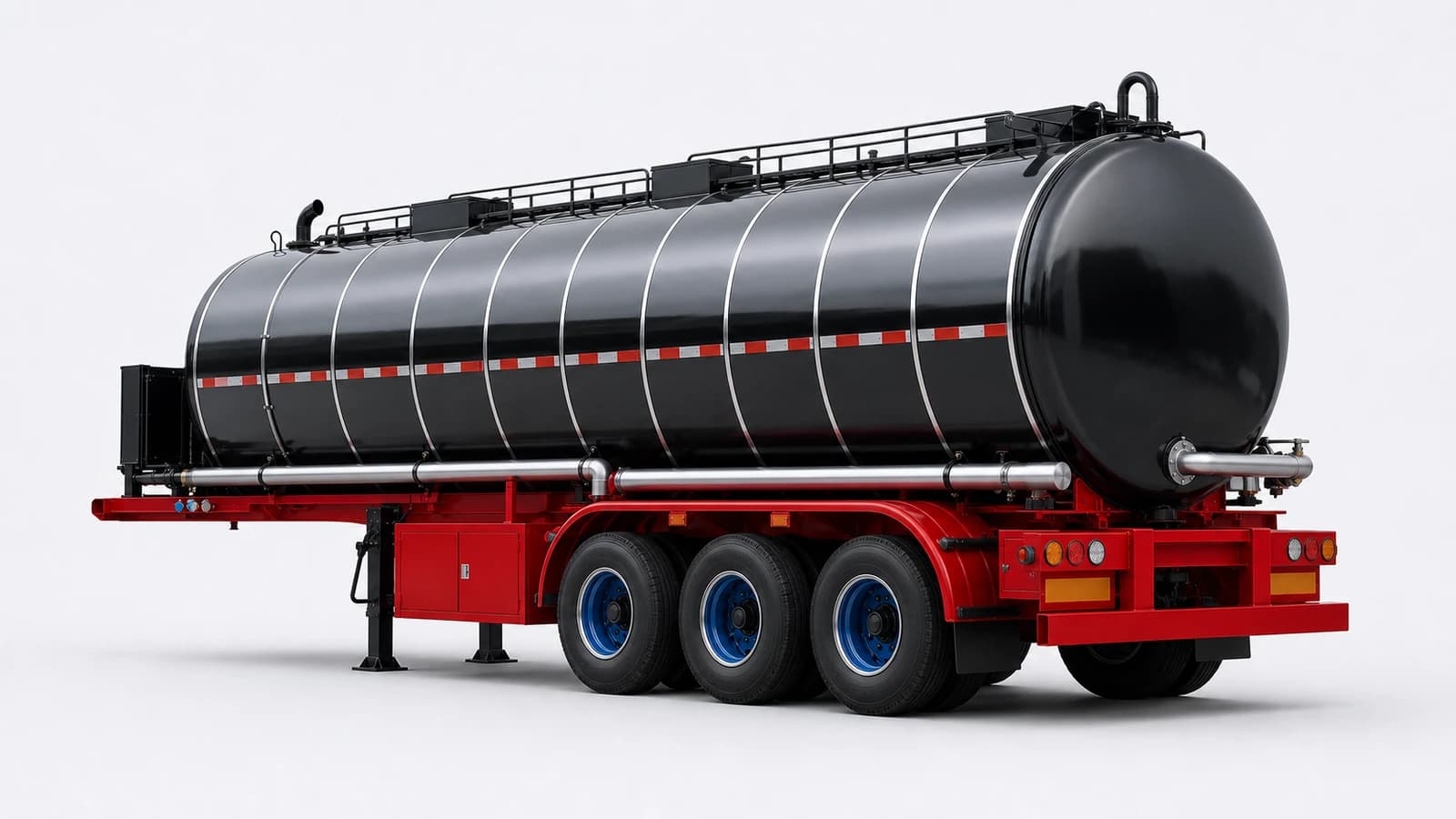

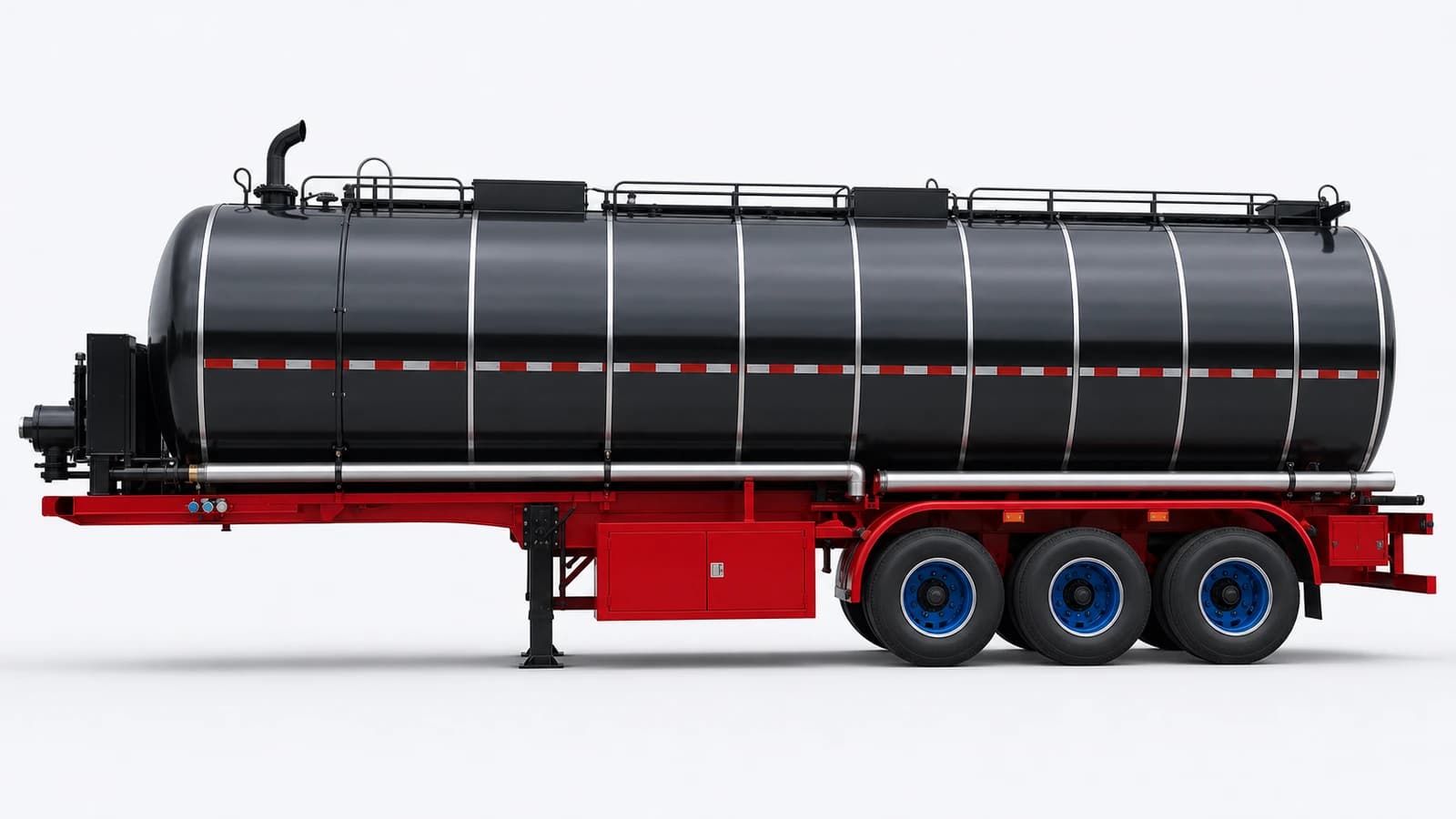

Bitumen & Hot-product Tanker Semi-trailer
Starting from $21,000
Insulated tank with heating and hot-product loading/discharge systems
At a glance
- Reference Payload
- 32,600 kg
- Tank Geometric Volume
- 31,200–32,000 L
- Technical Gross Trailer Mass
- 39,000 kg
- Working Pressure
- 2 bar
- Design Temperature Range
- -20 to +250 °C / -20 to +200 °C
- Overall Length
- 11,250 mm
Best suited to
road bitumen, heavy oil and validated compatible hot liquids
How it differs
Difference from a standard liquid tanker: maintains flow temperature, but thermal systems add tare weight, energy use and maintenance
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 11,250 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,600 mm | Fixed |
Tank Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Tank Diameter | 2,000 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,220 mm | Fixed |
| Wheelbase | 6,300 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 32,600 kg | Fixed |
| Reference Tare Weight | 6,400–6,850 kg | Thermal Design |
| Technical Gross Trailer Mass | 39,000 kg | Fixed |
| Kingpin Load | 12,000 kg | Fixed |
| Axle-group Load | 27,000 kg | Fixed |
| Tank Geometric Volume | 31,200–32,000 L | Thermal Design |
| Number of Compartments | 1 compartment | Fixed |
Pressure & Temperature
| Parameter | Reference value | Varies with |
|---|---|---|
| Working Pressure | 2 bar | Fixed |
| Test Pressure | 4 bar | Fixed |
| Design Temperature Range | -20 to +250 °C / -20 to +200 °C | Compatible Cargo |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 9,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Disc brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 385/65 R22.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 25 t dynamic / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | AISI 321 stainless insulated hot-product vessel | Fixed |
| Tank Material Grade | AISI 321 / 1.4541 / AISI 321 / 316L by cargo | Compatible Cargo |
| Tank Shell Thickness | 3 mm | Fixed |
| Insulation Thickness | 100–150 mm | Thermal Design |
| Corrosion Protection & Paint | Cleanable corrosion-resistant vessel finish plus protected chassis | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Discharge Outlet / Line | DN100 bottom valve to DN80 TW rear discharge | Fixed |
| Pump System | Gear pump; diesel burner / thermal-oil heating optional / 150 mm enhanced insulation plus burner/thermal-oil heating options | Thermal Design |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Compatible Cargo | Road bitumen / asphalt binder / Coal tar, heavy oil or other validated hot liquids | Compatible Cargo |
| Tank Code / Dangerous-goods Class | ADR L4BH reference | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Compatible Cargo
Bitumen / Asphalt
Heating, insulation, pumps, valves and seals are configured for bitumen temperature and viscosity
Best for: road bitumen/asphalt binders
If omitted: other hot products require a new check of temperature, corrosion and cleaning and cannot be assumed interchangeable.
Non-bitumen Hot Products
Materials, heating and discharge systems are adapted for heavy oil, hot oil or other hot liquids
Best for: validated non-bitumen hot products
If omitted: the bitumen package remains focused on high-viscosity road material and may not suit other hot media.
Changes: Design Temperature Range, Tank Material Grade, Reference Compatible Cargo
Confirmed at inquiry: Provide cargo, SDS, density, temperature, loading/discharge pressure and destination code
Thermal Design
Enhanced Insulation
Thicker insulation or reduced thermal bridges slows cargo cooling
Best for: long distance, cold ambient conditions or high-pour-point products
If omitted: standard insulation is lighter and cheaper, but narrows allowable trip time and ambient range.
On our sample Tank Geometric Volume 31,200–32,000 L
Changes: Tank Geometric Volume, Reference Tare Weight, Insulation Thickness, Pump System
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Vessels are certified by third parties
Pressure tests are witnessed and the certificate carries the chassis number of the unit, so it can be matched to the trailer that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
