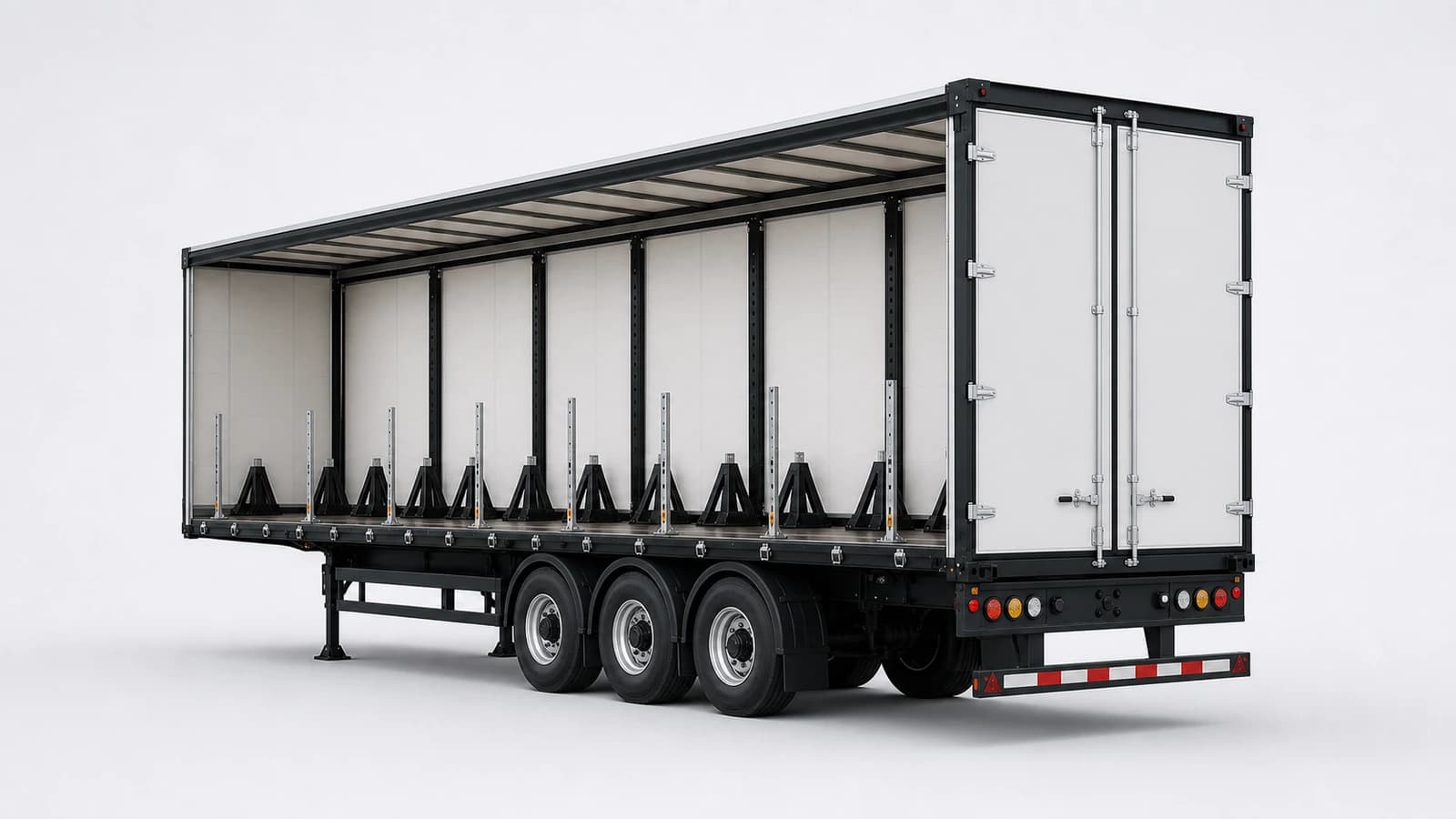

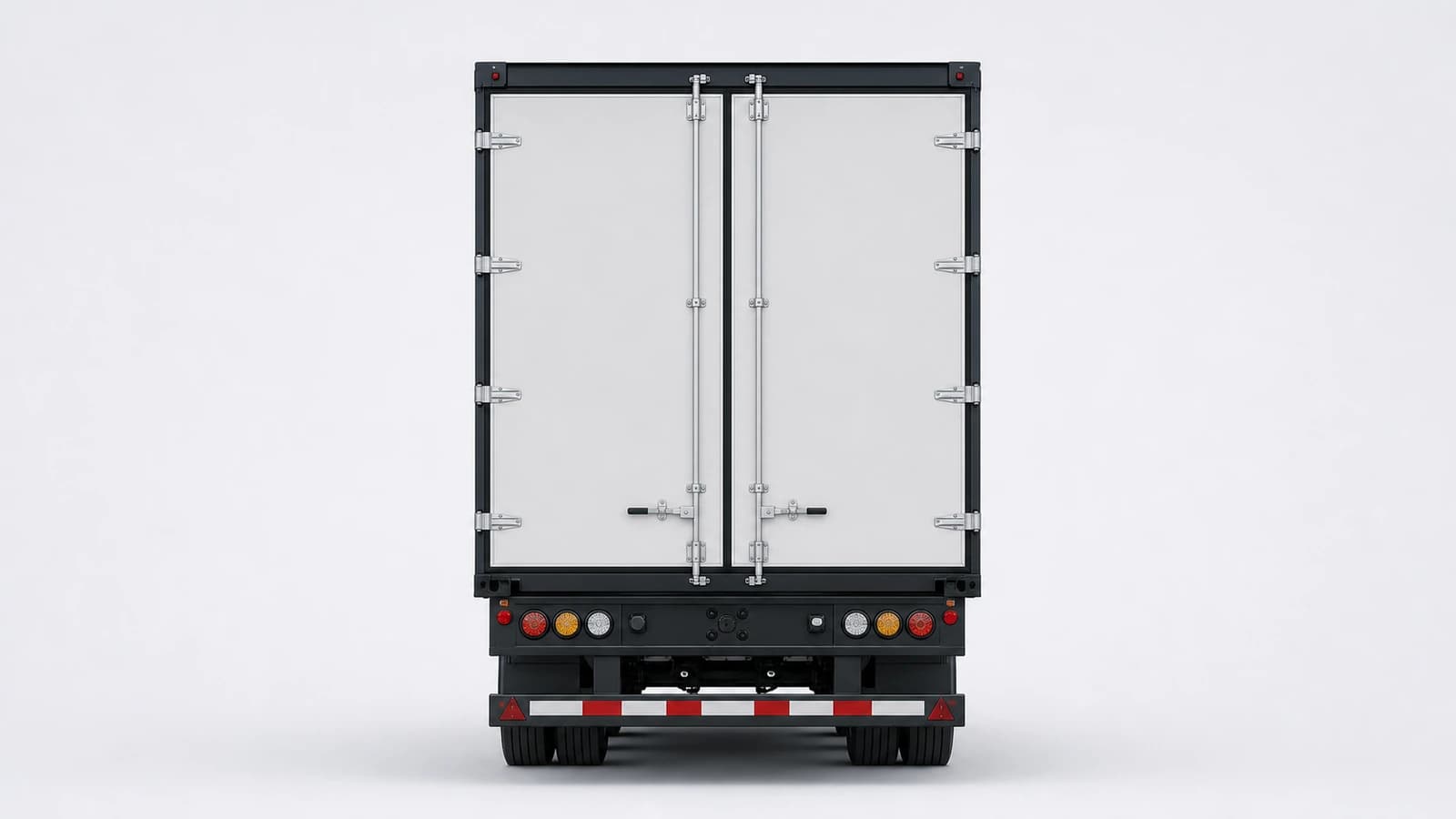

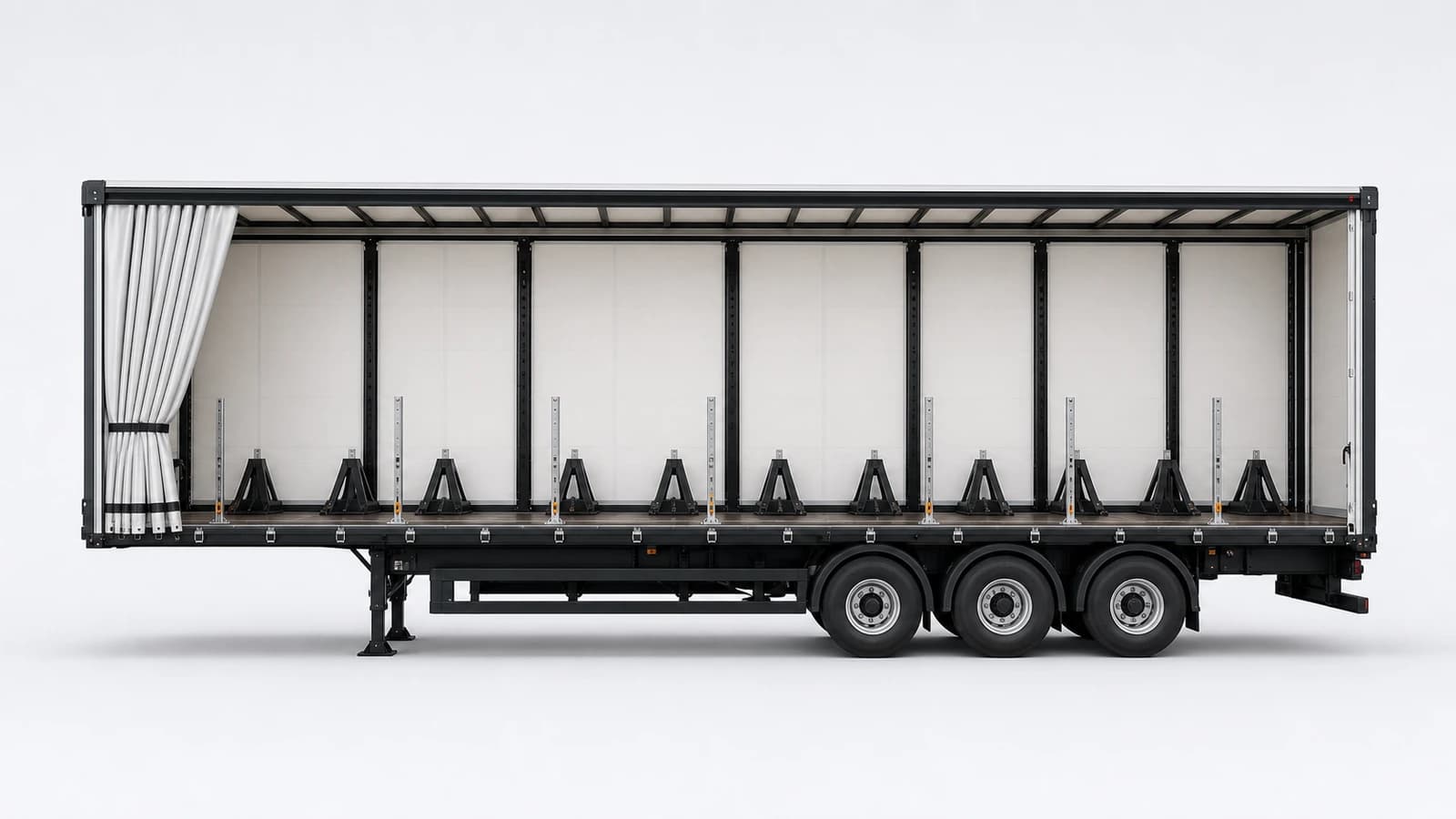

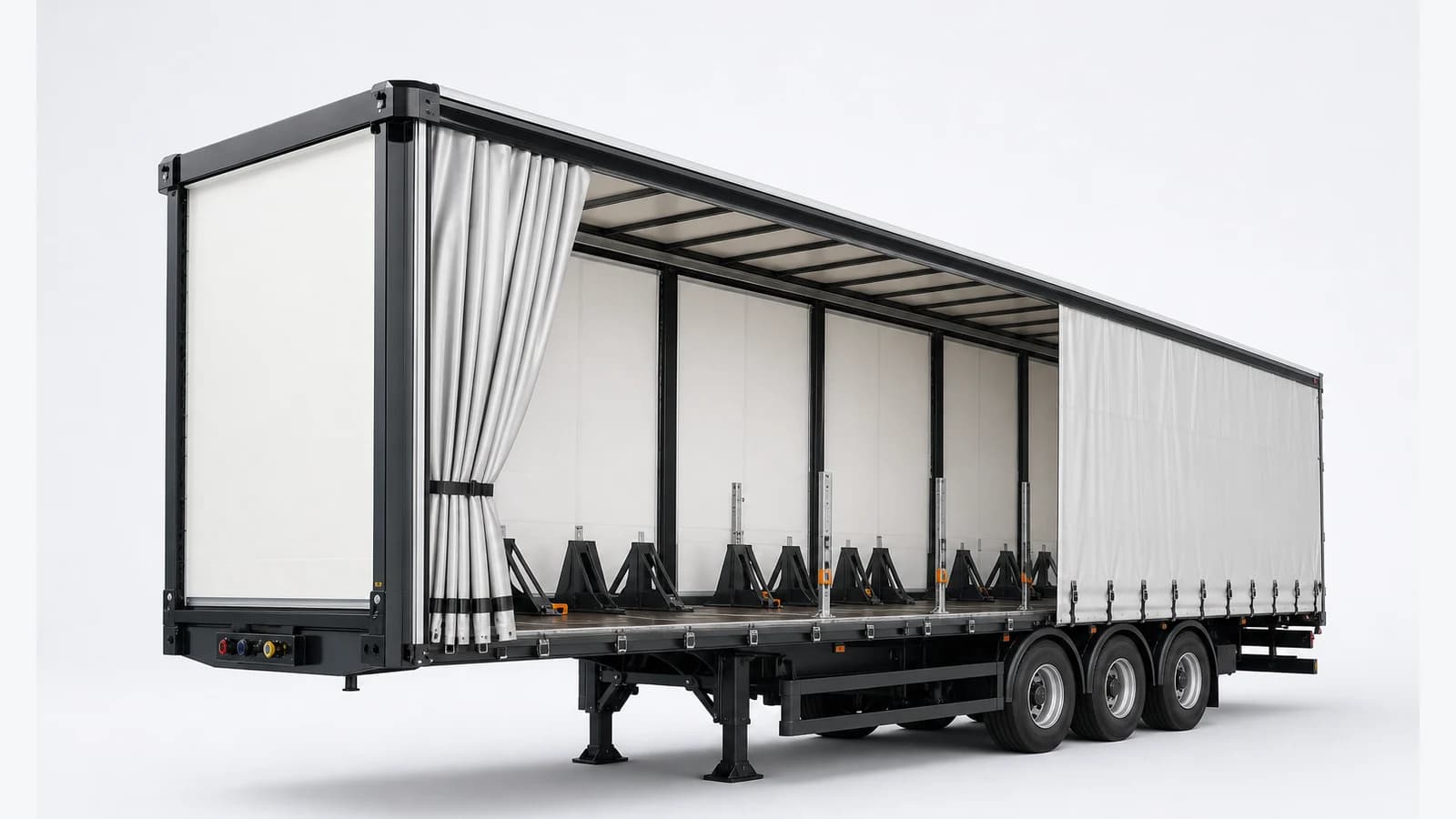

Paper Carrier Curtainsider Semi-trailer

Reference specification

Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.

Specifying for your region

The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.

Africa

Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific homologation, axle/load and left/right-hand traffic review

Middle East

50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review

Latin America

Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified

Non-EU Eastern Europe

-30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
