GC-03-S01

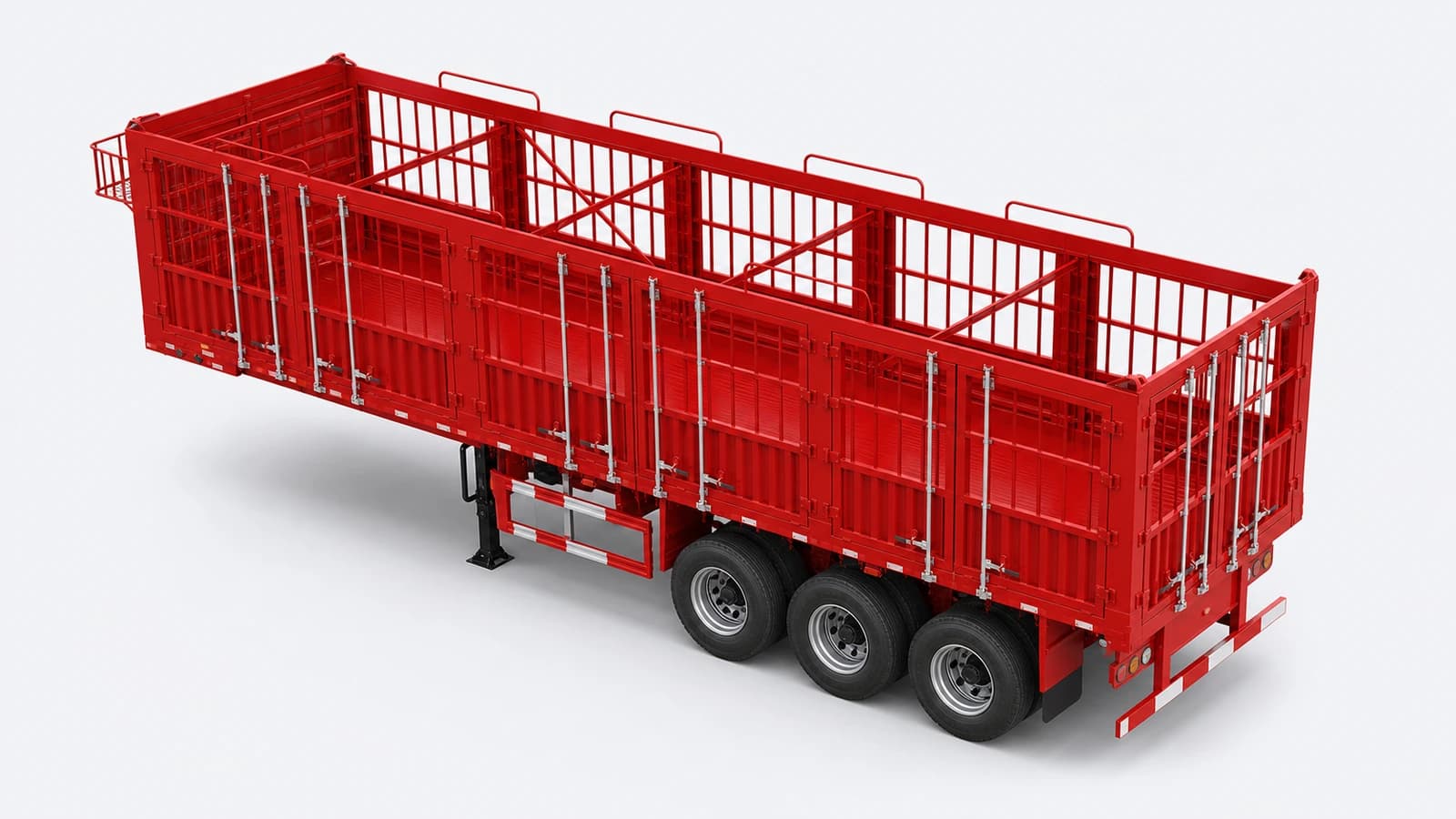

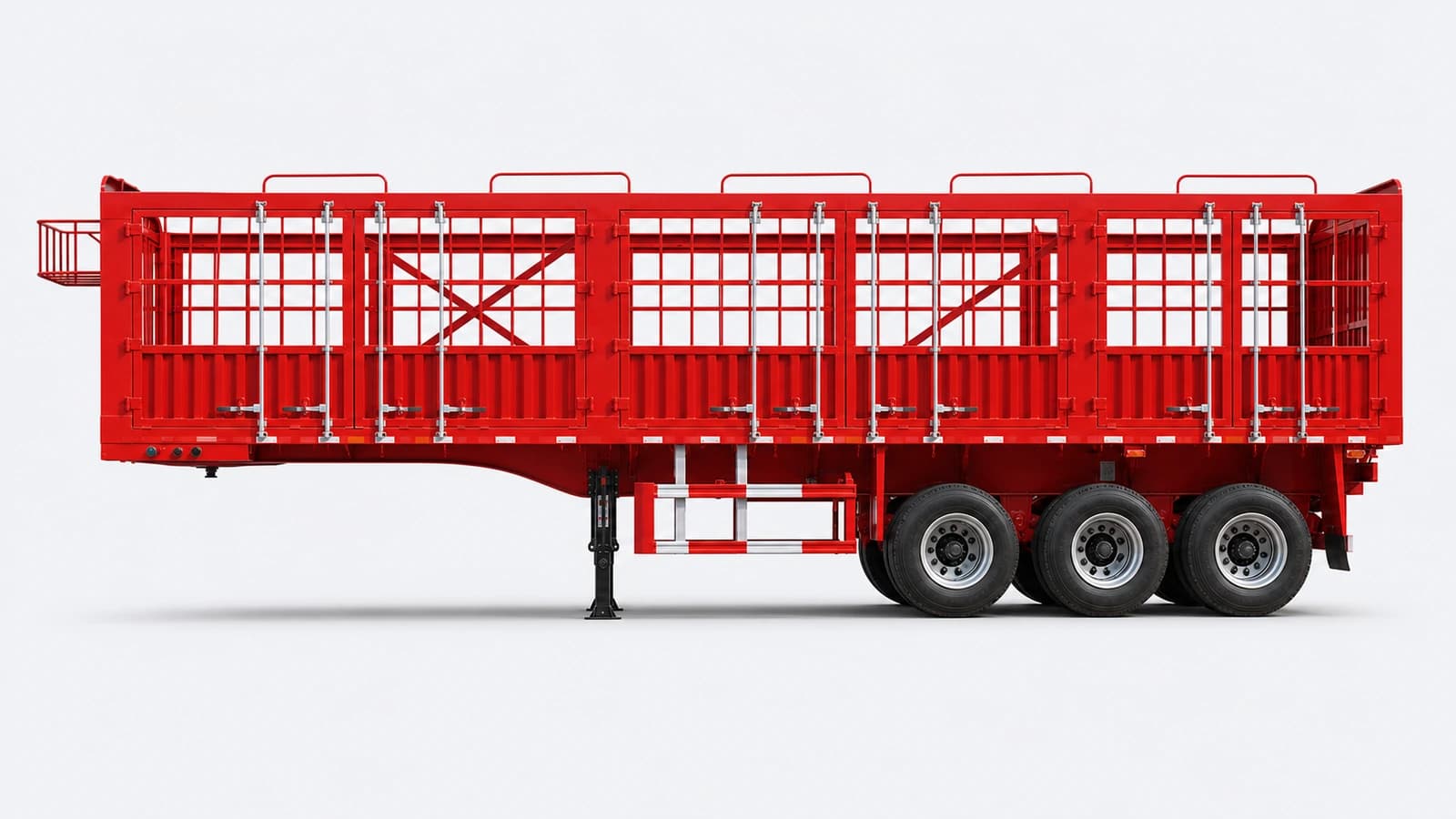

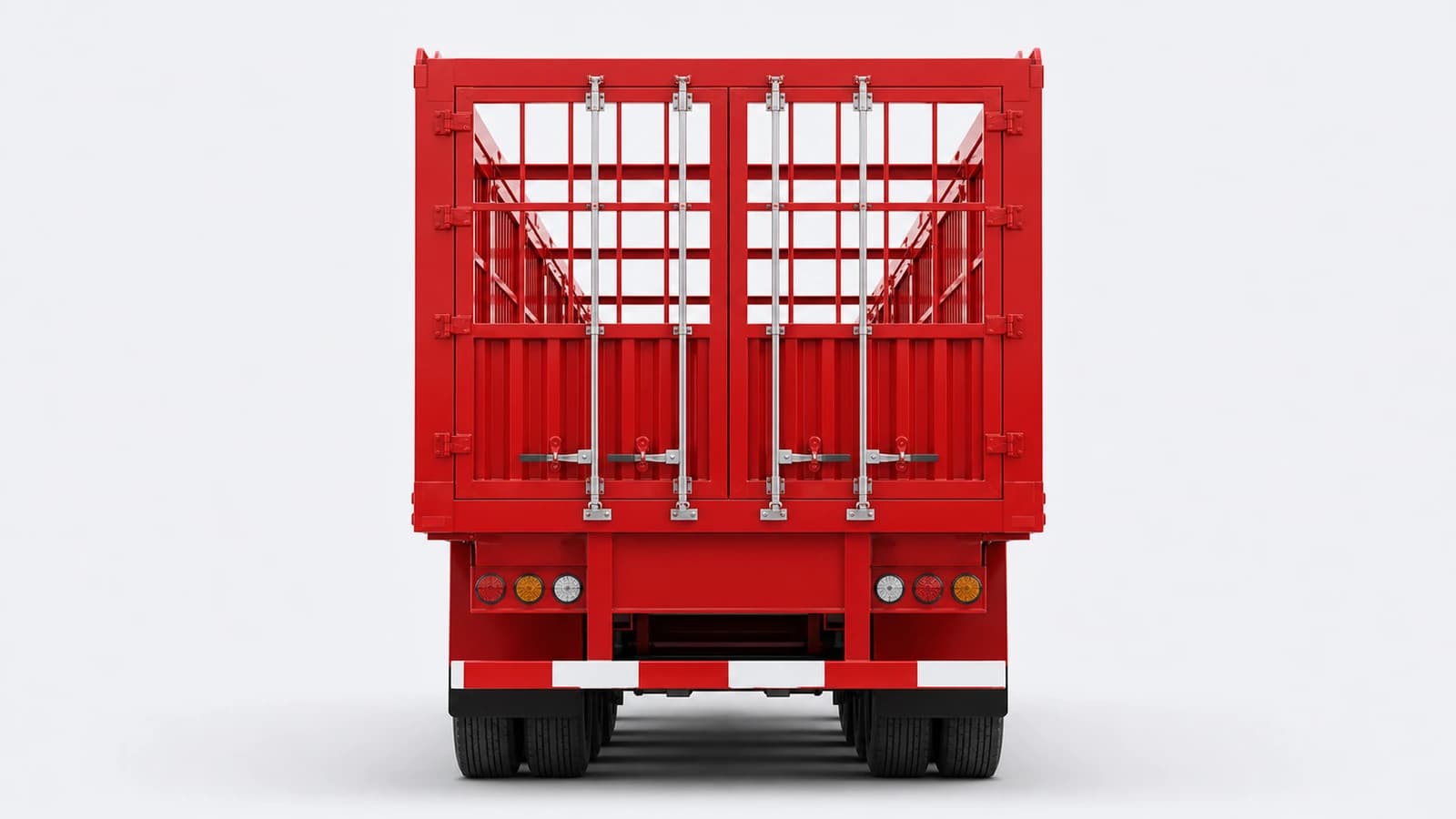

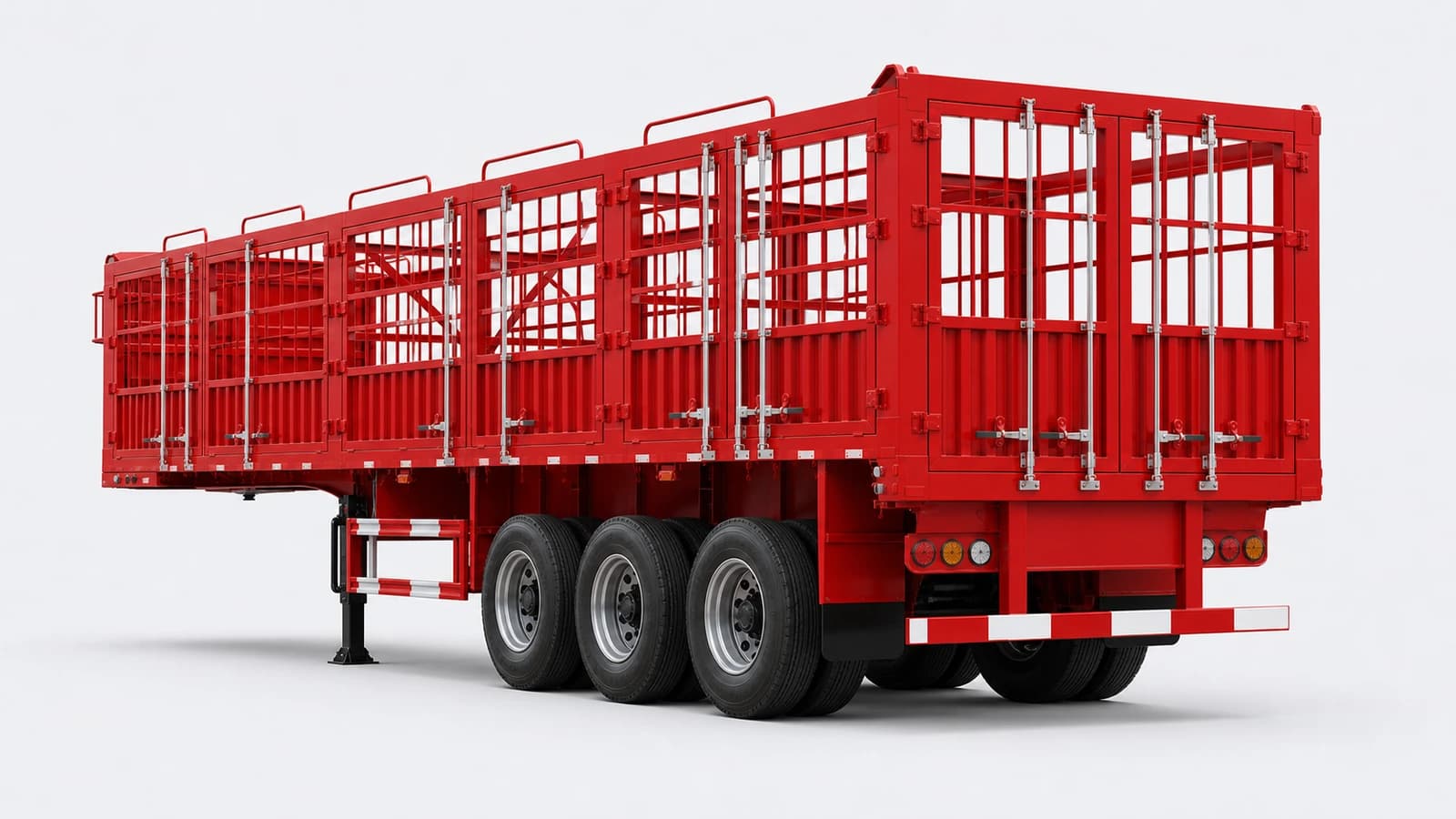

Fence Cargo Semi-trailer
Starting from $14,500
Fence, stake or cage structures provide high lateral restraint and ventilation
At a glance
- Reference Payload
- 45,000 kg
- Technical Gross Trailer Mass
- 52,600 kg
- Overall Length
- 13,000 mm
- Loading Deck Length
- 12,800 mm
- Number of Axles
- 3 axles
- Suspension
- Heavy-duty mechanical leaf spring
Best suited to
bagged produce, bulky light cargo and general freight needing tall containment
How it differs
Difference from the standard sidewall model: higher restraint, but no weather protection comparable with a box body
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 13,000 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,350 mm | Fixed |
Cargo Space & Deck
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Deck Length | 12,800 mm | Fixed |
| Loading Deck Width | 2,480 mm | Fixed |
| Sidewall / Fence Height | 1,600 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 45,000 kgFactories often advertise 50-60 t technical capacity; this reference uses 45 t to avoid overstatement. | Fixed |
| Reference Tare Weight | 7,600–7,850 kg | Cargo Restraint Structure, Fence Construction |
| Technical Gross Trailer Mass | 52,600 kg | Fixed |
| Kingpin Load | 16,000 kg | Fixed |
| Axle-group Load | 39,000 kg | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 13,000 kg | Fixed |
| Reference Axle Brand | FUWA / BPW or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Heavy-duty mechanical leaf spring | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | ABS 4S/2M | Fixed |
| Tyre Size | 12R22.5 | Fixed |
| Number of Tyres | 12 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Primary Chassis Material | Q345B / S355 high-strength steel | Fixed |
| Main Beam Height | 500 mm | Fixed |
| Floor / Deck Material | 3 mm chequered steel plate | Fixed |
| Body / Vessel Material | Q345B stakes with detachable/fixed fence panels / Removable stakes plus sectional fence panels / Fixed welded fence structure / Quick-detachable fence panels and stakes | Cargo Restraint Structure, Fence Construction |
| Corrosion Protection & Paint | Shot blasting + epoxy primer + polyurethane topcoat | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Load-securing Points | 12 pairs of lashing rings plus stake-type lateral restraint | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Cargo Restraint Structure
Stake / Stanchion Type
Stakes provide segmented lateral restraint for logs, pipes and long cargo
Best for: lashable long loads
If omitted: continuous fence panels suit bags and smaller items better, but give less focused restraint to cylindrical long cargo.
On our sample Reference Tare Weight 7,600–7,850 kg
Changes: Reference Tare Weight, Body / Vessel Material
Confirmed at inquiry: Provide cargo, SDS, density, temperature, loading/discharge pressure and destination code
Fence Construction
Fixed Fence
Fixed fence construction offers high rigidity without repeated assembly
Best for: regular bagged produce and bulky light cargo
If omitted: detachable fences enable open-deck conversion, but add loose-part management and locking checks.
Detachable Fence
Detachable fence sections convert the trailer between fenced and open-deck use
Best for: variable backhauls or full side access
If omitted: fixed fences are stronger and simpler, but less convertible.
Changes: Body / Vessel Material, Reference Tare Weight
Confirmed at inquiry: Confirm duty, loads, dimensions, road/site conditions and destination requirements
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Inspection records match the unit
Final vehicle or assembly inspection is recorded against the unit identification, so the report can be matched to the product that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
