HC-04-S02

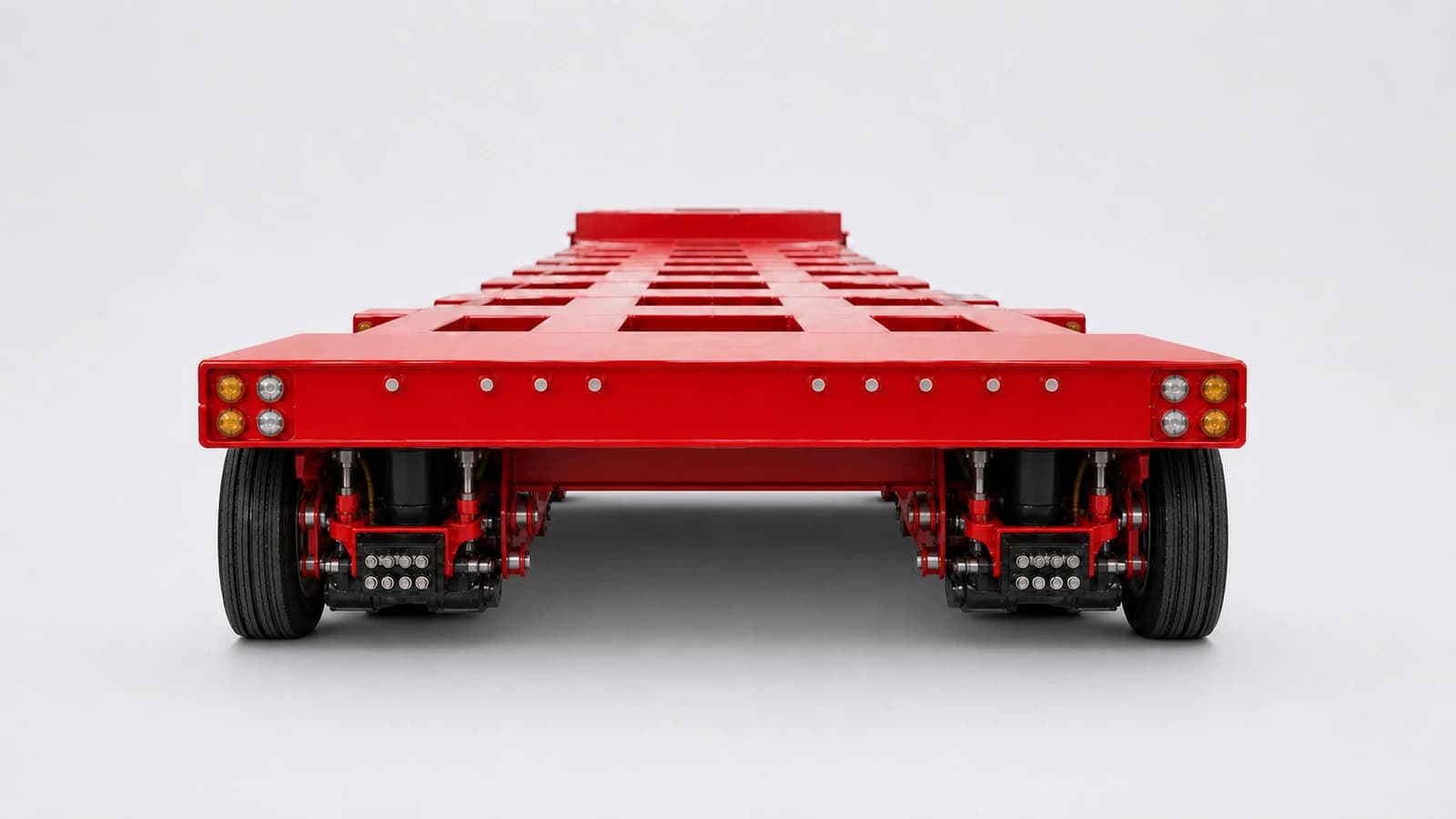

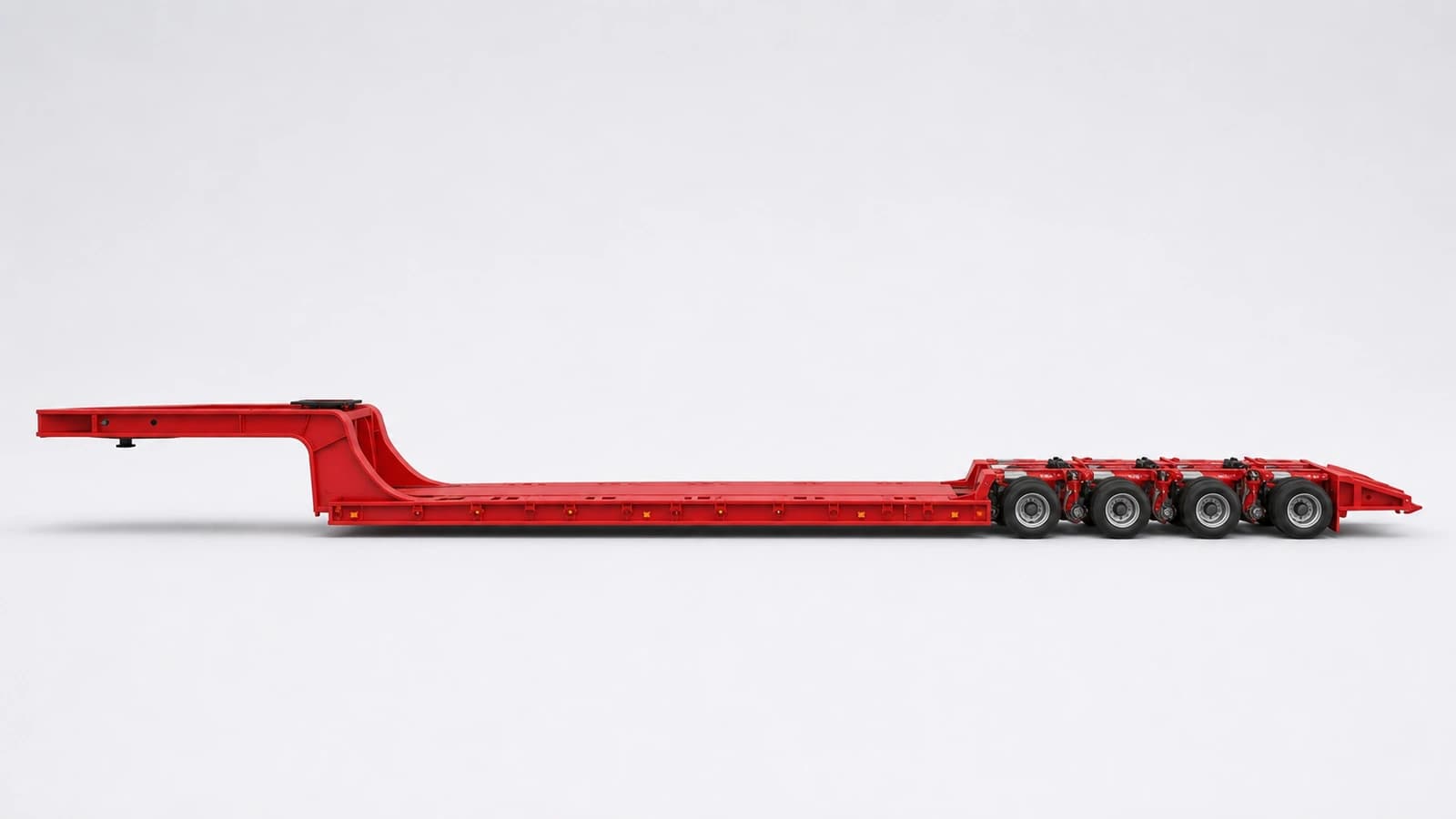

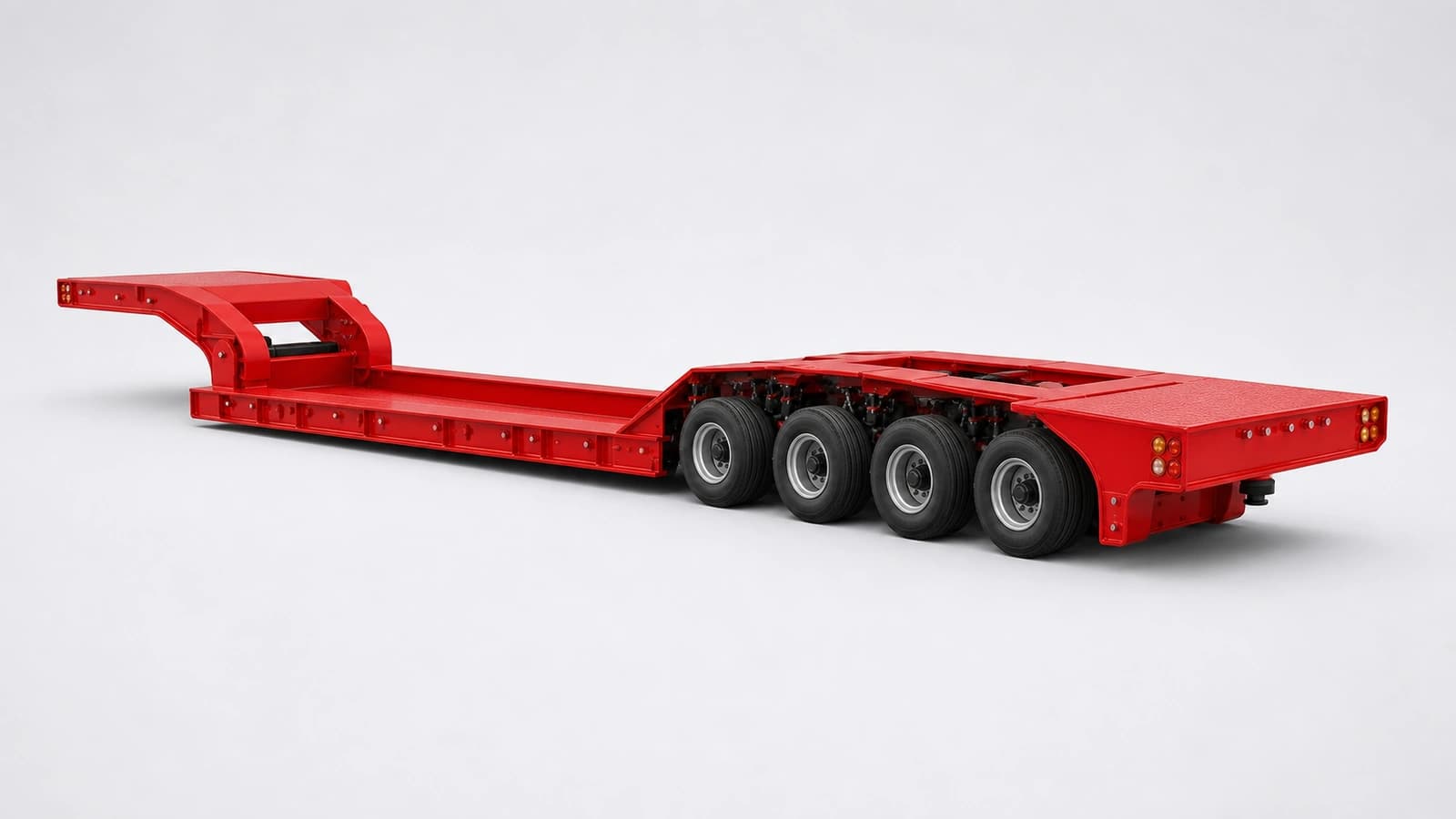

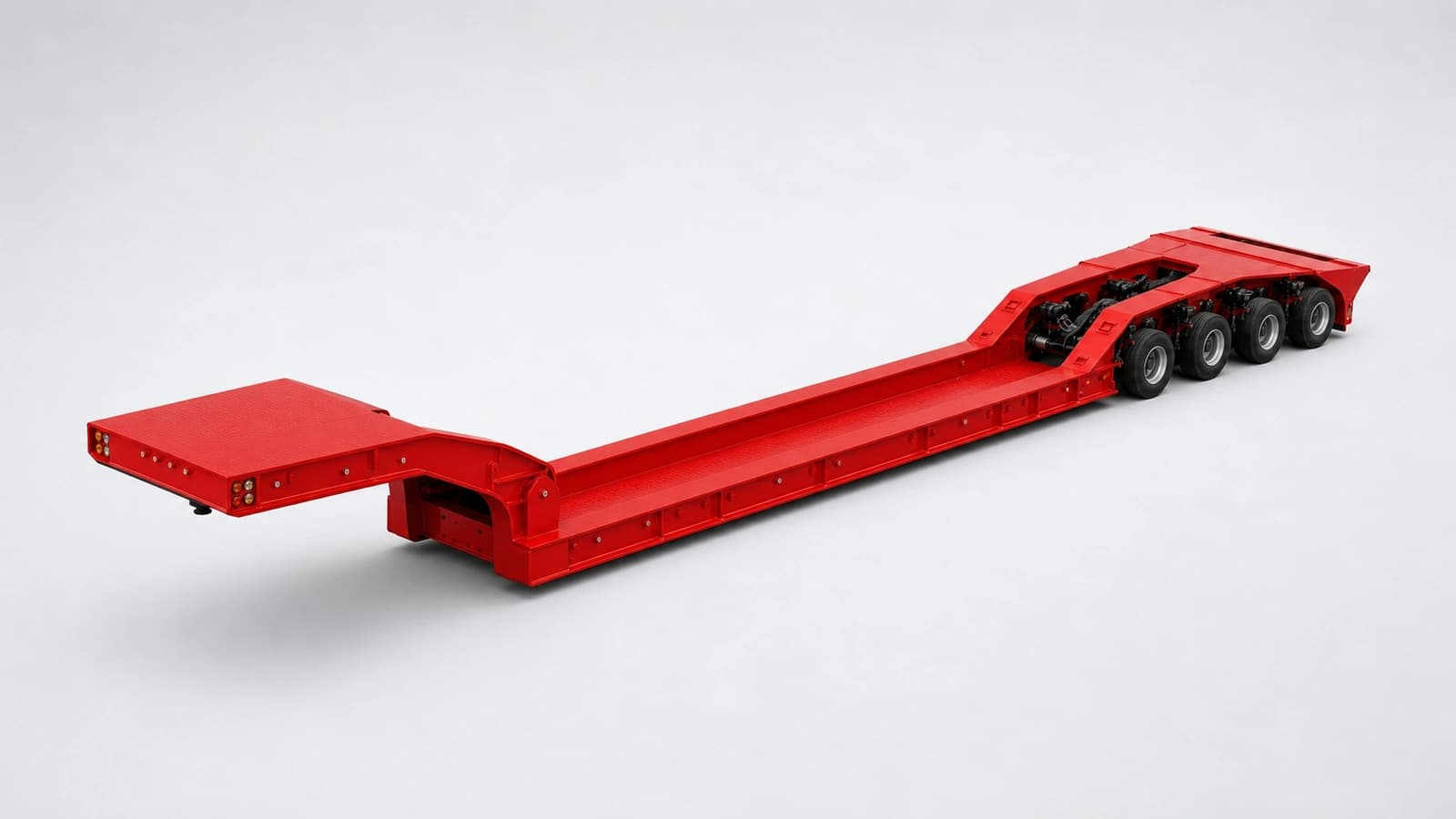

Pendular-axle Low-loader Semi-trailer
Hydraulic-steered & Multi-axle Low-loaders
Starting from $18,800
Pendular axles and independent suspension provide large steering angles, suspension travel and even wheel loads
At a glance
- Reference Payload
- 67,000 kg
- Technical Gross Trailer Mass
- 84,000 kg
- Overall Length
- 14,950 mm
- Loading Deck Length
- 11,000 mm
- Maximum Extension
- 5,550 mm
- Deck Height (Loaded)
- 920 mm
Best suited to
super-heavy machinery and uneven sites
How it differs
Difference from a conventional hydraulic-steered low-loader: greater ground compensation and load capability, but a more specialised heavy-haul structure
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 14,950 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
Cargo Space & Deck
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Deck Length | 11,000 mm | Fixed |
| Maximum Extension | 5,550 mm | Fixed |
| Loading Deck Width | 3,150–3,200 mm | Lateral Deck Extension |
| Deck Height (Loaded) | 920 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,250 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 67,000 kg | Axle Layout |
| Reference Tare Weight | 17,000–17,800 kg | Axle Layout, Lateral Deck Extension |
| Technical Gross Trailer Mass | 84,000 kg | Axle Layout |
| Kingpin Load | 24,000 kg | Fixed |
| Axle-group Load | 60,000 kg | Axle Layout |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 6 axles | Axle Layout |
| Technical Capacity per Axle | 10,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 245/70 R17.5 | Fixed |
| Number of Tyres | 24 tyres | Axle Layout |
| Axle Spacing | 1,310 mm | Fixed |
| Steering Axle System | Six pendular axles with forced hydraulic steering / Six axles with forced hydraulic steering | Axle Layout |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 3.5 in heavy-duty bolt-in | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Primary Chassis Material | S700MC hydraulic-steered high-strength chassis | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Extension Arrangement | Single extension up to 5,550 mm / Longitudinal extension plus hydraulic/mechanical width expansion to 3,200 mm | Lateral Deck Extension |
Specialist Systems
| Parameter | Reference value | Varies with |
|---|---|---|
| Hydraulic Axle Compensation | 650 mm | Fixed |
| Maximum Steering Angle | 60 ° | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Axle Layout
Multi-axle Configuration
Additional axle lines increase capacity and spread wheel loads
Best for: super-heavy cargo and strict axle-load routes
If omitted: fewer axle lines improve agility and reduce tare weight, but lower total capacity and pavement-load control.
On our sample Reference Payload 67,000 kg
Changes: Reference Payload, Reference Tare Weight, Technical Gross Trailer Mass, Axle-group Load, Number of Axles, Number of Tyres, Steering Axle System
Confirmed at inquiry: Confirm payload, legal axle loads, tyres, road class and tractor fifth-wheel load
Lateral Deck Extension
Width-expandable Deck
Laterally extendable deck increases support width for wide machinery
Best for: tracked equipment, wide machines and irregular project cargo
If omitted: standard width is lighter and simpler for road permits, but provides less support and stability for wide loads.
On our sample Loading Deck Width 3,150–3,200 mm
Changes: Loading Deck Width, Reference Tare Weight, Extension Arrangement
Confirmed at inquiry: Provide cargo dimensions, point loads, extension cases, turning radius and route envelope
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Inspection records match the unit
Final vehicle or assembly inspection is recorded against the unit identification, so the report can be matched to the product that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Other variants in this category
Same platform, different body or duty. Worth comparing before you settle on one.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
