TB-08-S03

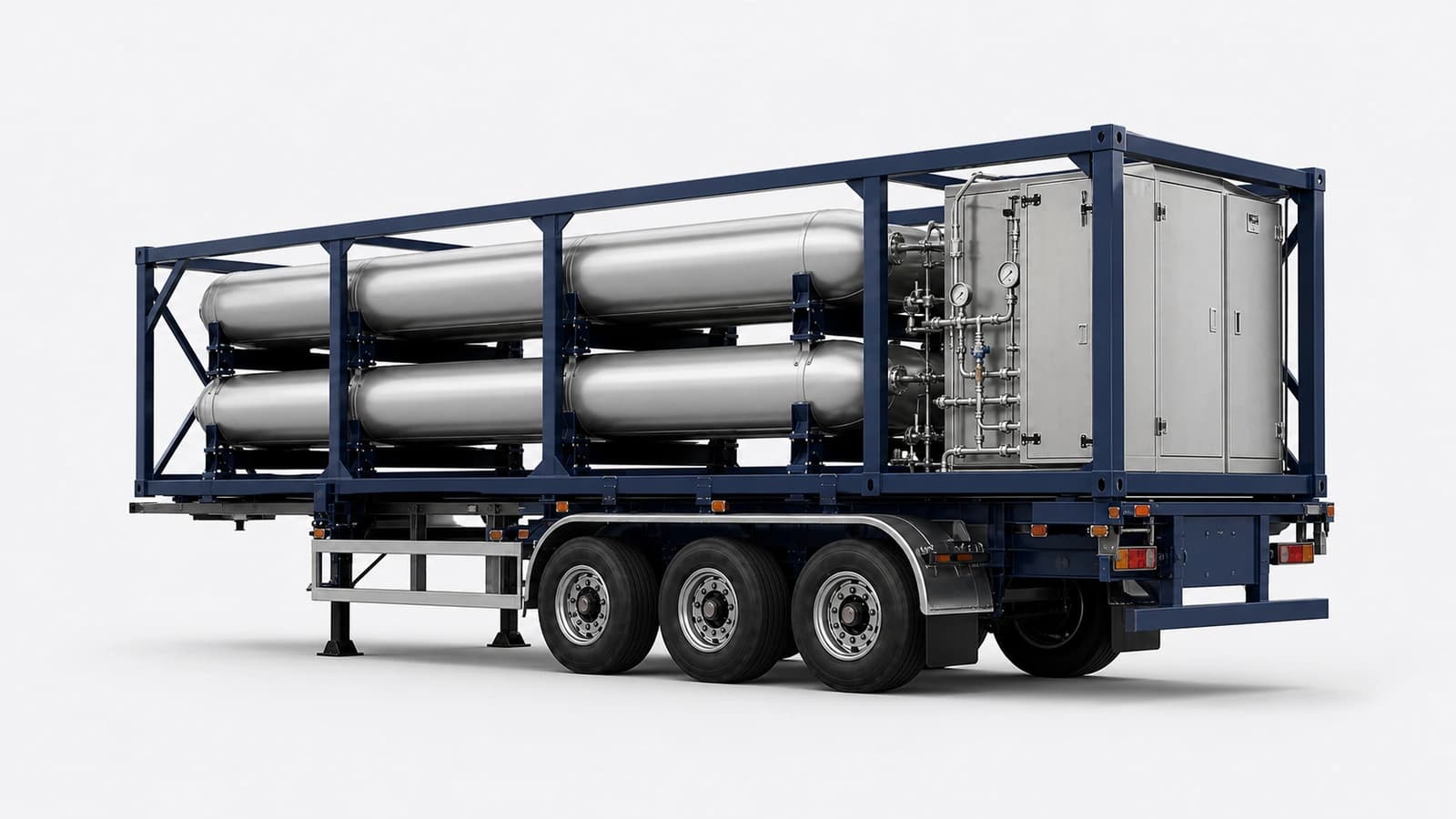

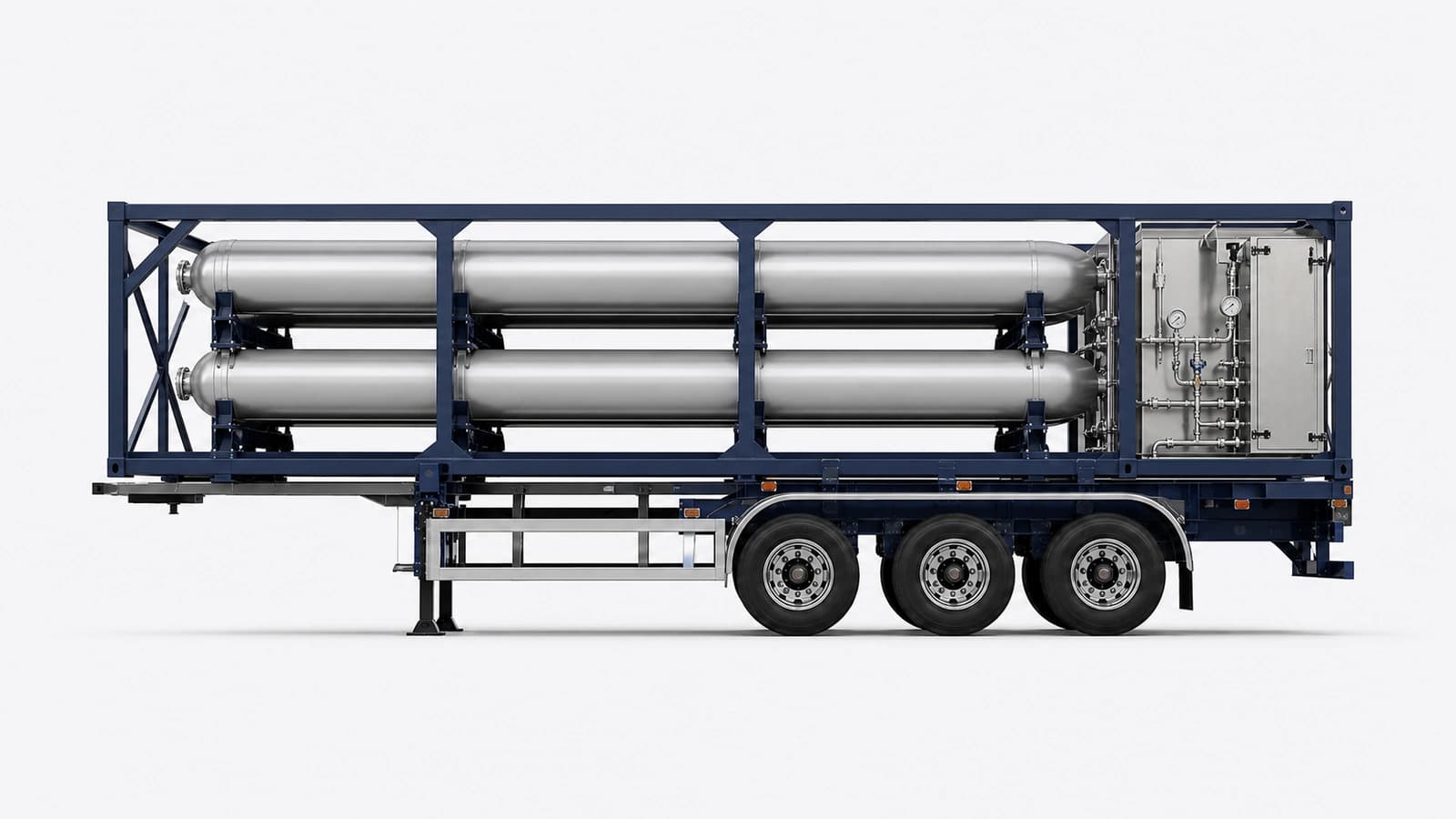

Industrial-gas Pressure Tanker Semi-trailer
Starting from $17,400

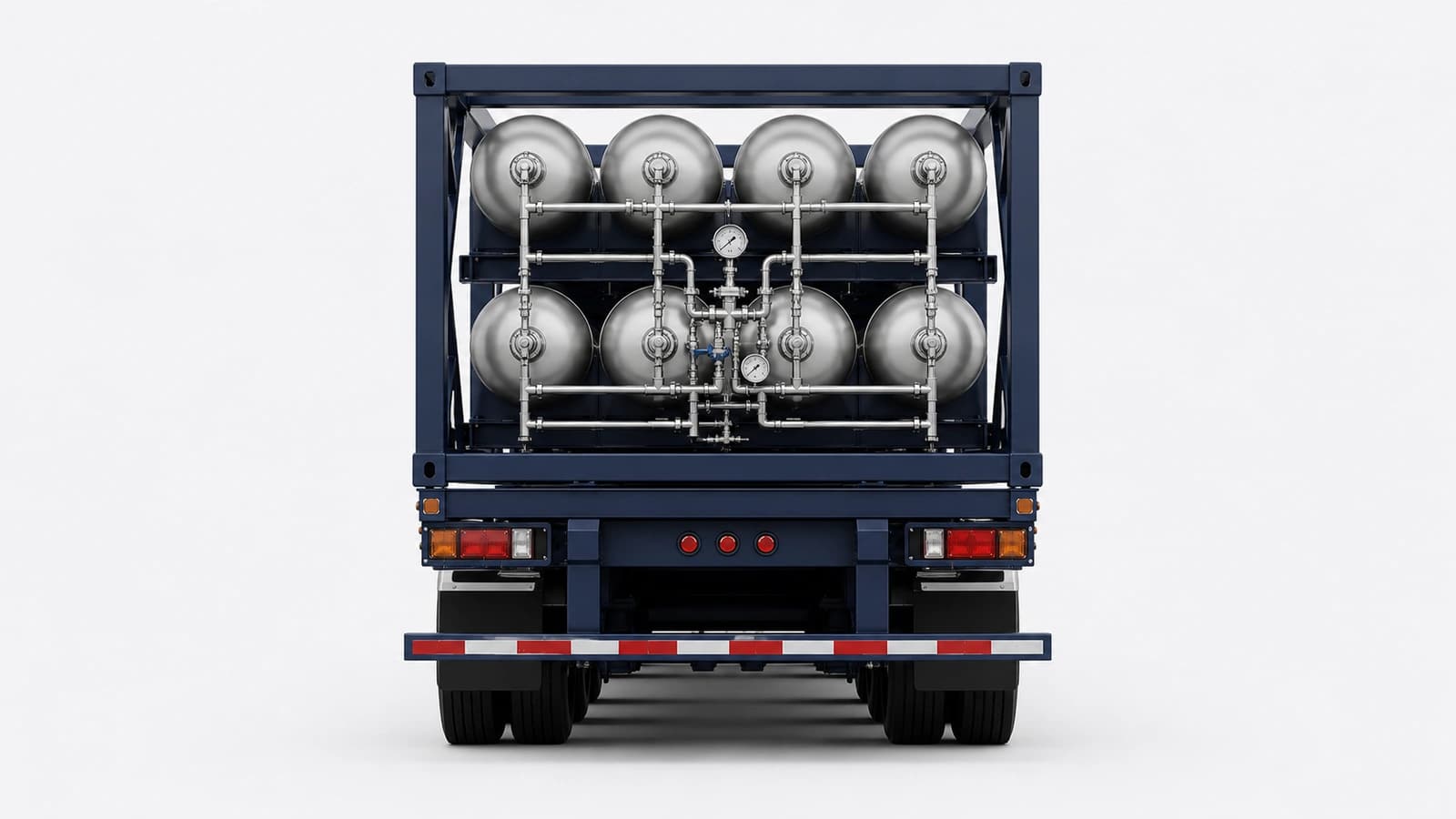

High-pressure vessel, manifold and dedicated valves for non-cryogenic industrial gas service
At a glance
- Reference Payload
- 25,500 kg
- Tank Geometric Volume
- 50,000 L
- Technical Gross Trailer Mass
- 40,000 kg
- Design Temperature Range
- -40 to +50 °C
- Overall Length
- 12,500 mm
- Number of Axles
- 3 axles
Best suited to
approved compressed industrial gases
How it differs
Difference from the LPG model: pressure level, vessel form, valves and medium rules differ and cannot be changed by relabelling or fittings alone
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 12,500 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,950 mm | Fixed |
Tank Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Tank Diameter | 2,400 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,250 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 25,500 kg | Fixed |
| Reference Tare Weight | 14,500 kg | Fixed |
| Technical Gross Trailer Mass | 40,000 kg | Fixed |
| Tank Geometric Volume | 50,000 L | Fixed |
| Number of Compartments | 1 compartment | Fixed |
Pressure & Temperature
| Parameter | Reference value | Varies with |
|---|---|---|
| Design Pressure | 22 bar | Fixed |
| Test Pressure | 28 bar | Fixed |
| Design Temperature Range | -40 to +50 °C | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 13,000 kg | Fixed |
| Reference Axle Brand | FUWA / BPW or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Heavy-duty mechanical leaf spring | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | ABS 4S/2M | Fixed |
| Tyre Size | 12R22.5 | Fixed |
| Number of Tyres | 12 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 3.5 in bolt-in | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | Pressure-vessel steel cylindrical tank, medium-specific | Fixed |
| Tank Material Grade | P460NL2 / A516 Gr.70 to selected design code | Fixed |
| Tank Shell Thickness | 14 mm | Fixed |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Design / Approval Reference | ADR/TPED or ASME/DOT selected by destination | Fixed |
| Reference Compatible Cargo | Ammonia, CO₂ or other pressure cargo after medium-specific design validation | Fixed |
| Pressure Safety System | Dual relief valves plus pressure/level monitoring | Fixed |
| Emergency Shut-off & Overfill | Remote emergency shut-off and breakaway-protected piping | Fixed |
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Design code, pressure, temperature, filling ratio and valid pressure-vessel approval; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Design code, pressure, temperature, filling ratio and valid pressure-vessel approval; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Design code, pressure, temperature, filling ratio and valid pressure-vessel approval; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Design code, pressure, temperature, filling ratio and valid pressure-vessel approval; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Vessels are certified by third parties
Pressure tests are witnessed and the certificate carries the chassis number of the unit, so it can be matched to the trailer that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
