MS-01-S04

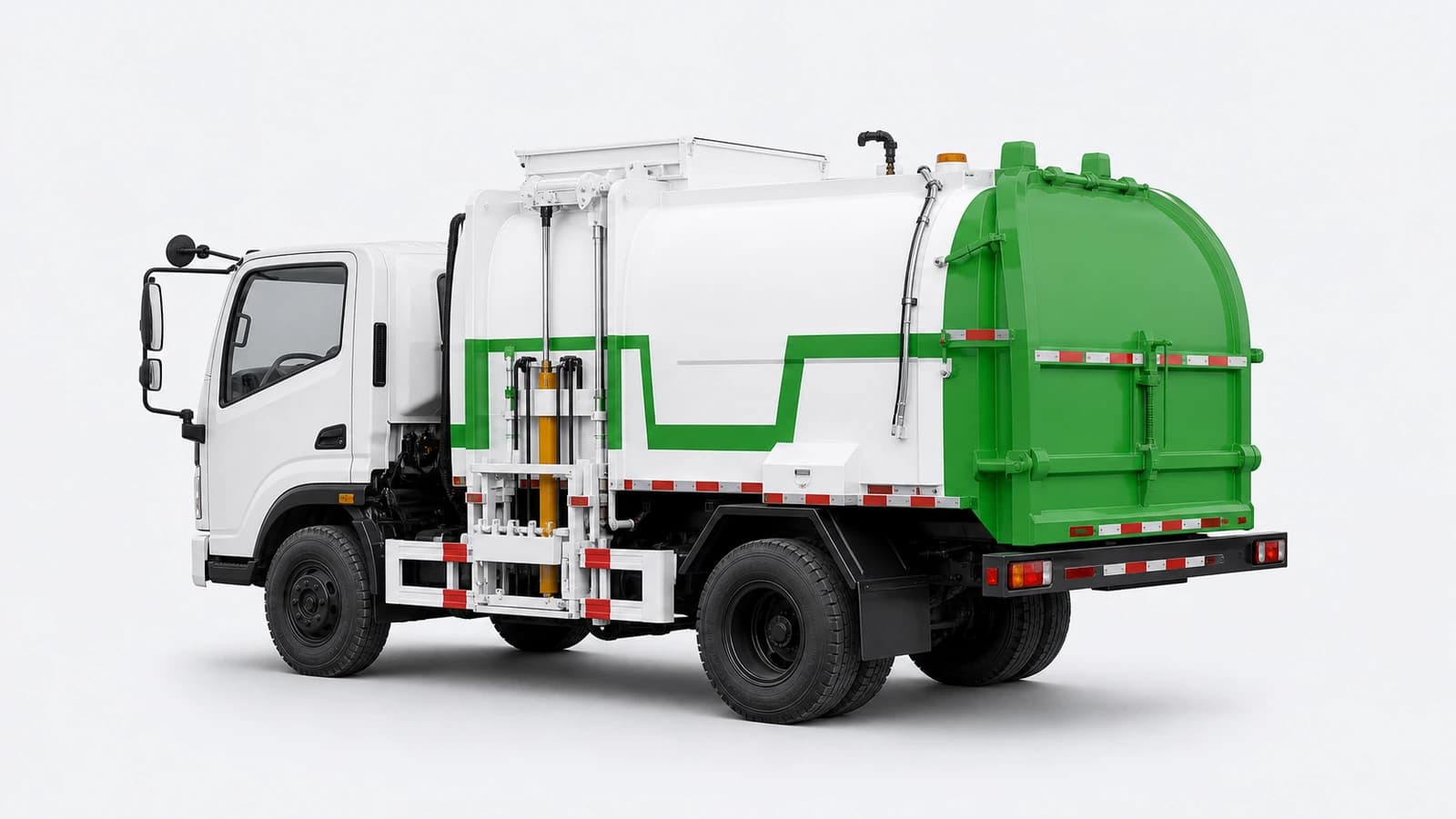

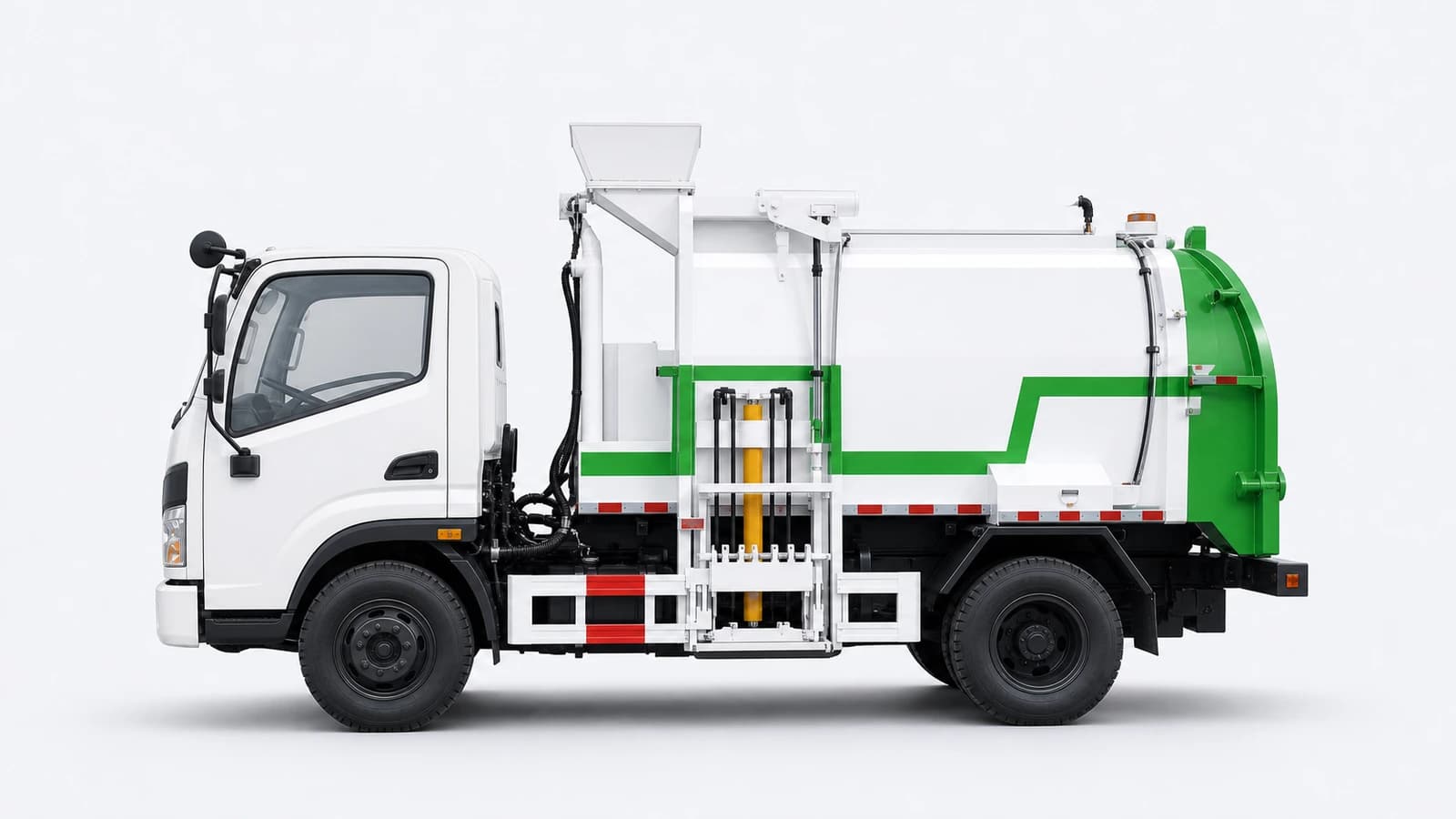

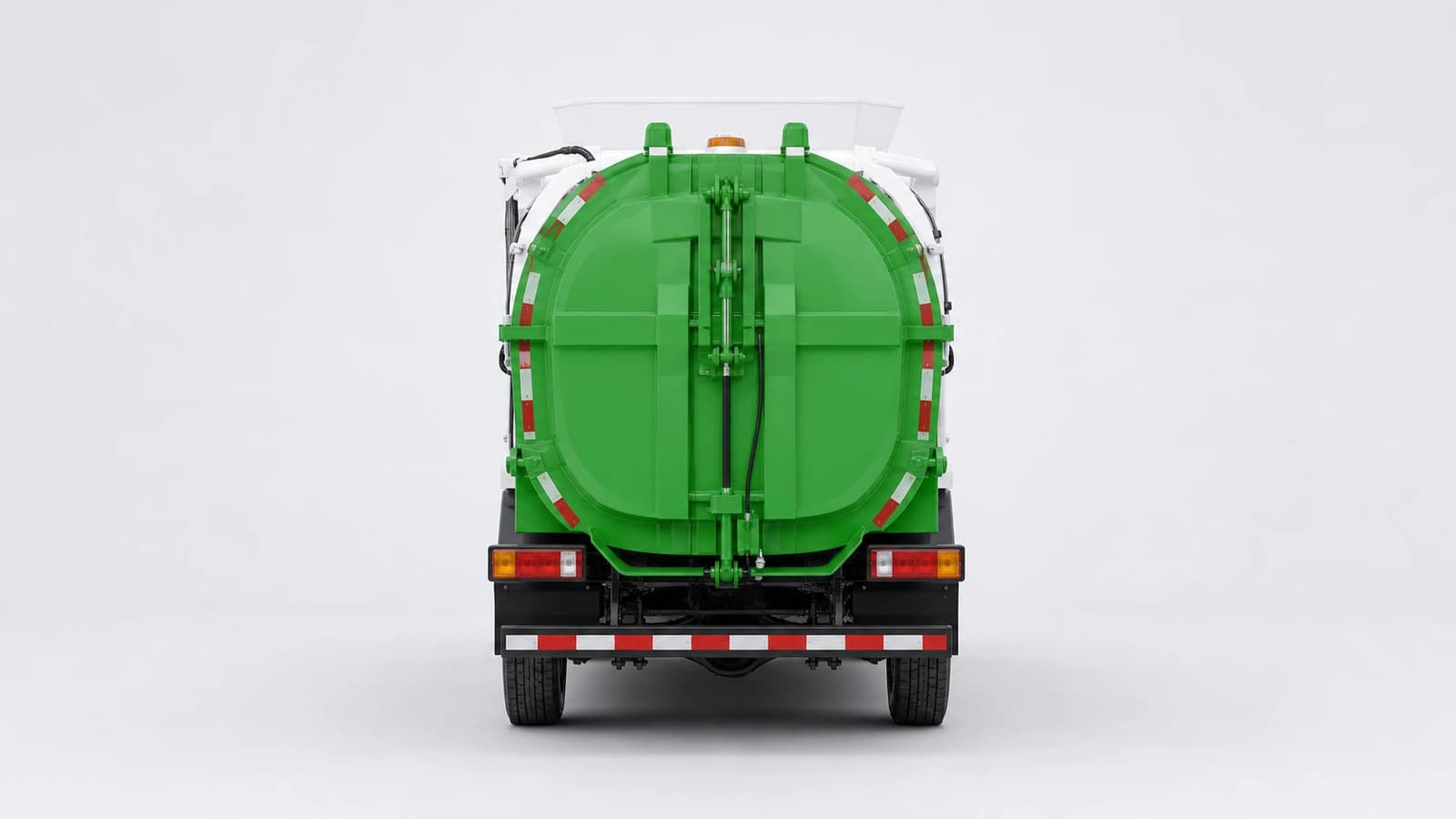

Food-waste Collection Truck
Starting from $16,700
Sealed corrosion-resistant body with liquid collection and wash-down systems controls leakage and odour
At a glance
- Reference Payload
- 6,000 kg
- Body / Cargo Volume
- 12 m³
- Technical Gross Trailer Mass
- 18,000 kg
- Overall Length
- 7,500 mm
- Number of Axles
- 2 axles
- Suspension
- Heavy-duty leaf-spring suspension
Best suited to
food, kitchen and wet organic waste
How it differs
Difference from a general compactor: stronger sealing and liquid management, but not primarily optimised for high compaction of mixed dry refuse
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 7,500 mm | Fixed |
| Overall Width | 2,450 mm | Fixed |
| Overall Height | 3,250 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 6,000 kg | Fixed |
| Reference Tare Weight | 4,500 kgBody-only reference; chassis excluded. | Fixed |
| Technical Gross Trailer Mass | 18,000 kg | Fixed |
| Body / Cargo Volume | 12 m³ | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 2 axles | Fixed |
| Reference Axle Brand | Commercial chassis (4×2); brand selected for destination service coverage | Fixed |
| Suspension | Heavy-duty leaf-spring suspension | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | ABS 4S/4M | Fixed |
| Tyre Size | 315/80 R22.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED road and work lighting arranged to destination rules | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | 304 stainless wetted parts with sealed leak-resistant body | Fixed |
| Lining / Internal Finish | Washable stainless lining and leachate tank | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Method | Rear bin lifter for 120-660 L containers | Fixed |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Design / Approval Reference | Chassis, axle loads, body approval and operating safety require destination-project confirmation | Fixed |
Specialist Systems
| Parameter | Reference value | Varies with |
|---|---|---|
| Waste Compaction Ratio | Approx. 1:2.5 for high-moisture food waste | Fixed |
| Container Lifting Capacity | 660 kg | Fixed |
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Chassis homologation, PTO/hydraulics, axle-load distribution and body approval; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Chassis homologation, PTO/hydraulics, axle-load distribution and body approval; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Chassis homologation, PTO/hydraulics, axle-load distribution and body approval; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Chassis homologation, PTO/hydraulics, axle-load distribution and body approval; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
