GC-02-S01

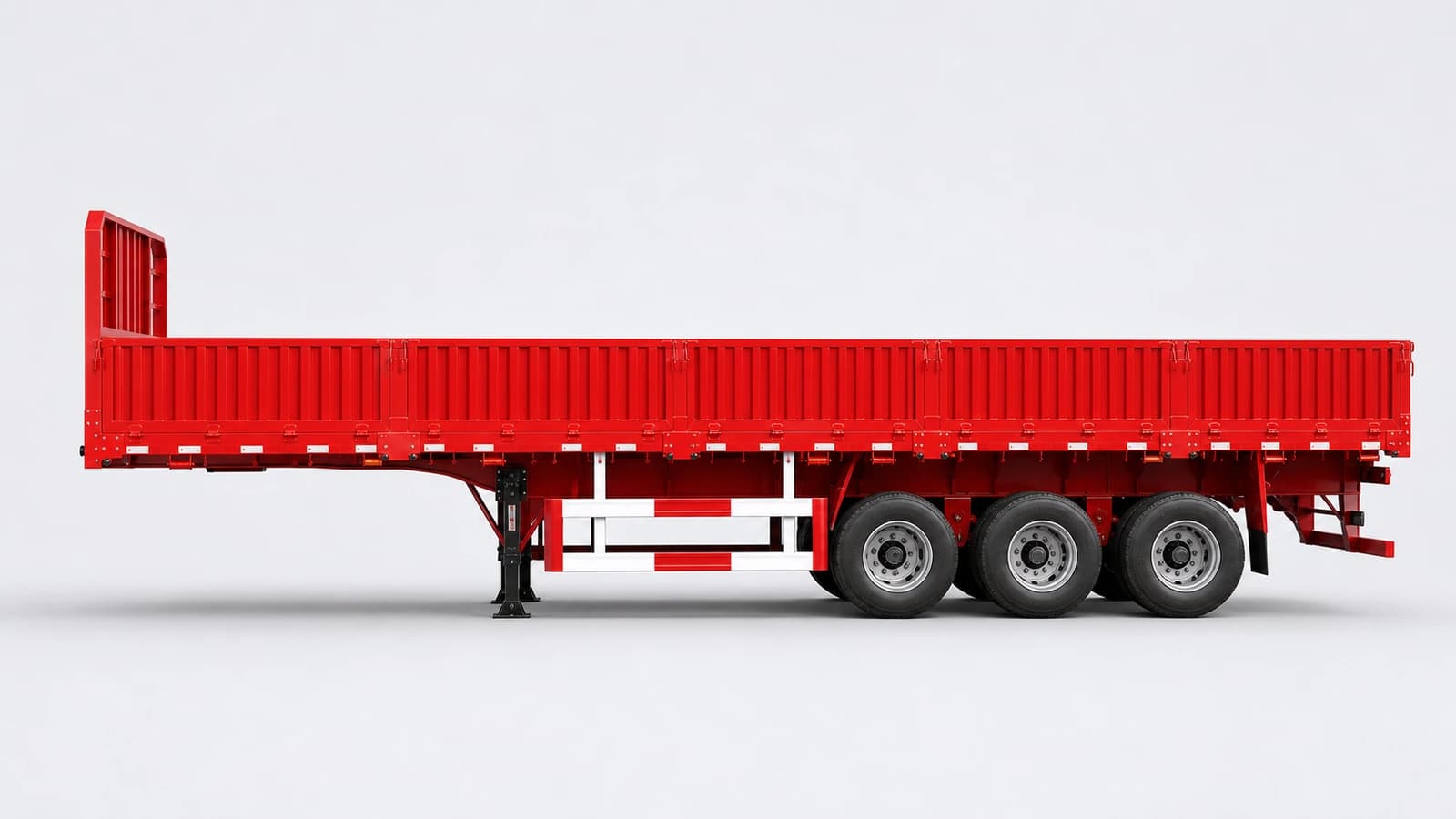

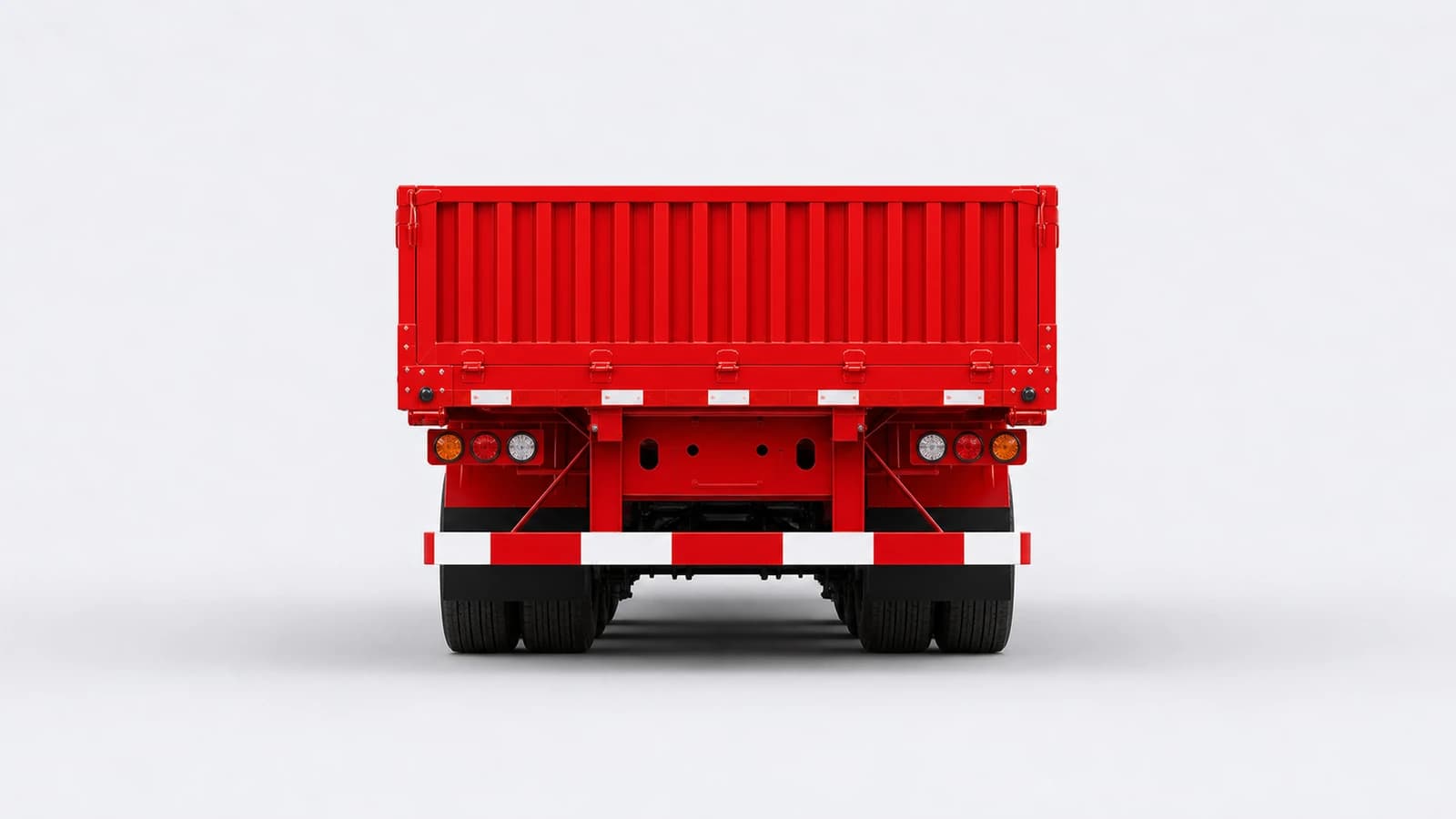

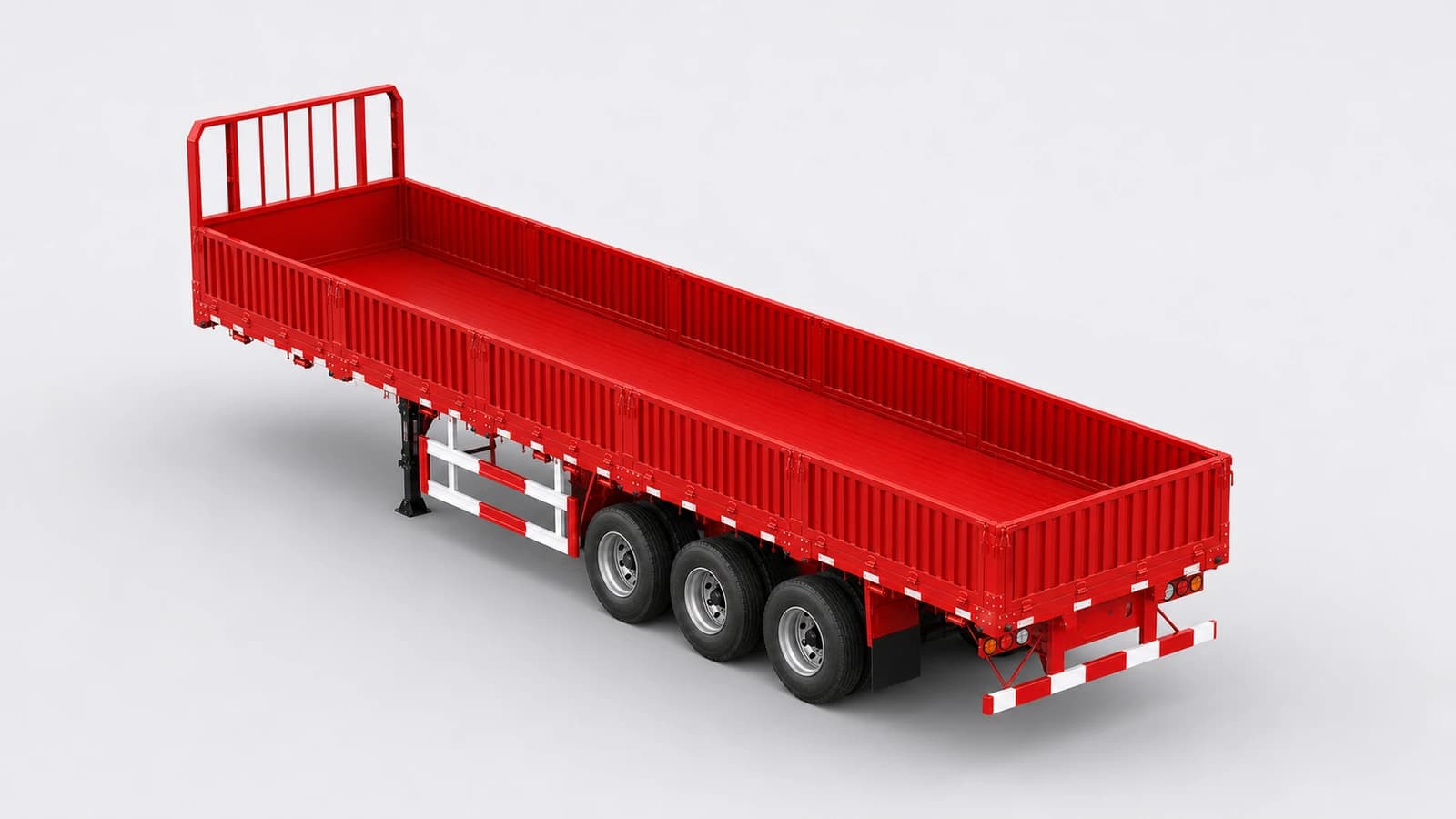

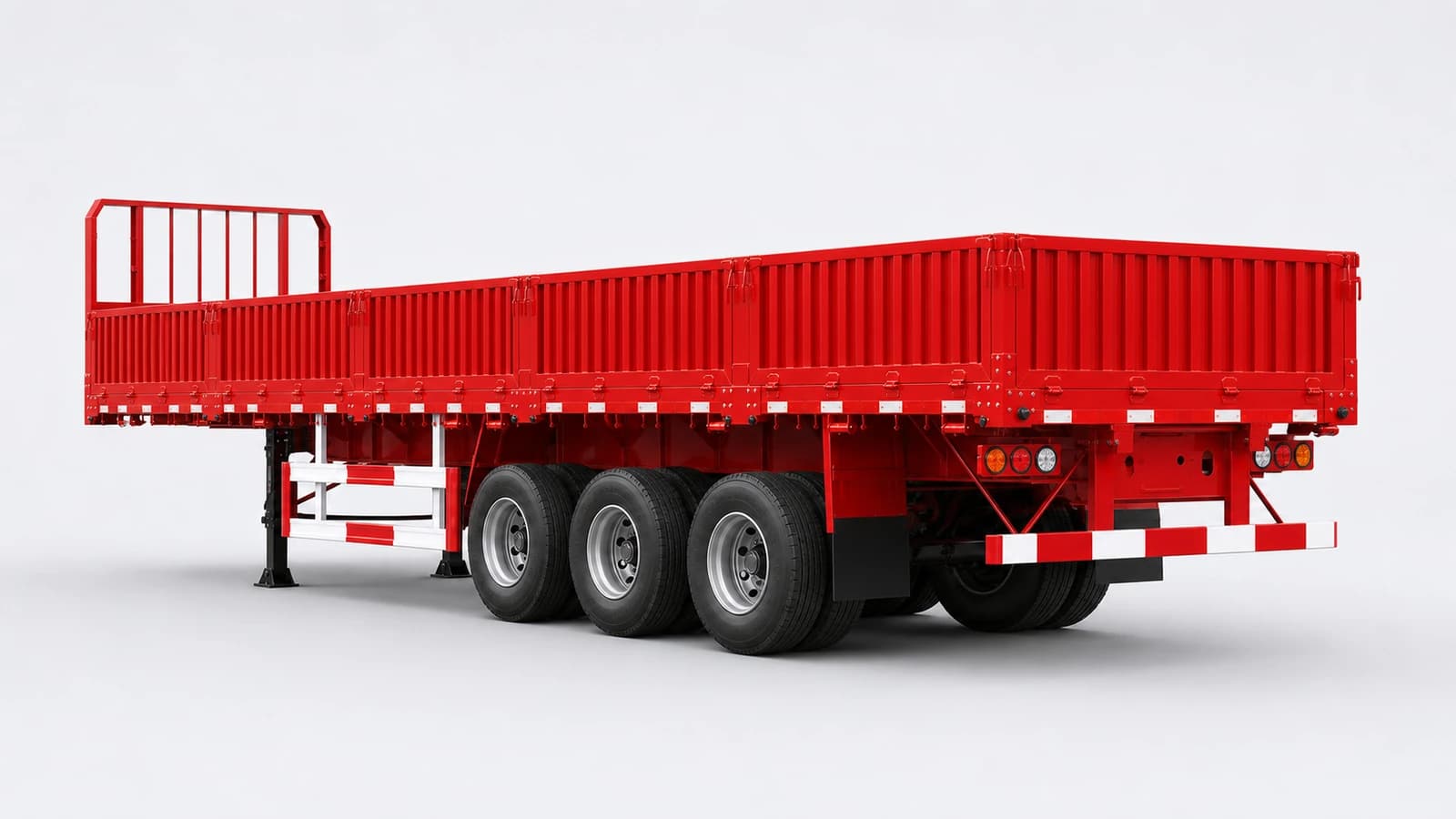

Sidewall Cargo Semi-trailer
Sidewall & Drop-side Semi-trailers
Starting from $7,700
Low-to-medium sidewalls restrain cargo, with opening type and height configurable
At a glance
- Reference Payload
- 38,100–39,000 kg
- Technical Gross Trailer Mass
- 45,500 kg
- Overall Length
- 13,600 mm
- Loading Deck Length
- 13,600 mm
- Deck Height (Loaded)
- 1,300 mm
- Number of Axles
- 3 axles
Best suited to
bagged goods, building materials, agricultural produce and general breakbulk
How it differs
Difference from the fence model: easier side access and lower tare weight, but less restraint for tall loose loads
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 13,600 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
Cargo Space & Deck
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Deck Length | 13,600 mm | Fixed |
| Loading Deck Width | 2,480 mm | Fixed |
| Deck Height (Loaded) | 1,300 mm | Fixed |
| Sidewall / Fence Height | 800–1,200 mm | Sidewall Height |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 38,100–39,000 kg | Sidewall Height |
| Reference Tare Weight | 6,500–6,950 kg | Sidewall Height |
| Technical Gross Trailer Mass | 45,500 kg | Fixed |
| Kingpin Load | 15,000 kg | Fixed |
| Axle-group Load | 39,000 kg | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 13,000 kg | Fixed |
| Reference Axle Brand | FUWA / BPW or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Heavy-duty mechanical leaf spring | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | ABS 4S/2M | Fixed |
| Tyre Size | 12R22.5 | Fixed |
| Number of Tyres | 12 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Primary Chassis Material | Q345B / S355 high-strength steel | Fixed |
| Main Beam Height | 500 mm | Fixed |
| Floor / Deck Material | 3 mm chequered steel plate; 30 mm hardwood optional | Fixed |
| Body / Vessel Material | 1,200 mm reinforced fixed sidewalls / 800 mm fixed sidewalls / Sectional drop-side panels | Sidewall Height, Sidewall Opening Type |
| Corrosion Protection & Paint | Shot blasting + epoxy primer + polyurethane topcoat | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Discharge / Unloading Method | Rear gate plus sectional drop sides / Rear gate; sidewalls are non-folding | Sidewall Opening Type |
| Load-securing Points | 12 pairs of lashing rings, 4,000 kg each | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Sidewall Height
High Sidewalls
Higher sidewalls increase containment volume
Best for: bulky light cargo, bagged produce and taller stacks
If omitted: standard sidewalls are lighter and easier for side loading, but provide less high-load containment.
On our sample Sidewall / Fence Height 800–1,200 mm
Changes: Sidewall / Fence Height, Reference Payload, Reference Tare Weight, Body / Vessel Material
Confirmed at inquiry: Confirm duty, loads, dimensions, road/site conditions and destination requirements
Sidewall Opening Type
Fixed Sidewalls
Fixed sidewalls have fewer joints and higher rigidity
Best for: bulk or bagged cargo loaded mainly from the rear or above
If omitted: opening sidewalls improve forklift side access, but add hinges and locking points.
Drop-side / Sectional Opening
Drop-side or sectional panels open for forklift access
Best for: multi-stop work, pallets and building materials
If omitted: fixed sidewalls are stronger and lower maintenance, but slower for side loading.
Changes: Discharge / Unloading Method, Body / Vessel Material
Confirmed at inquiry: Confirm duty, loads, dimensions, road/site conditions and destination requirements
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Dock height, forklift floor rating, temperature and ATP/FRC if used; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Inspection records match the unit
Final vehicle or assembly inspection is recorded against the unit identification, so the report can be matched to the product that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
