ST-03-S02

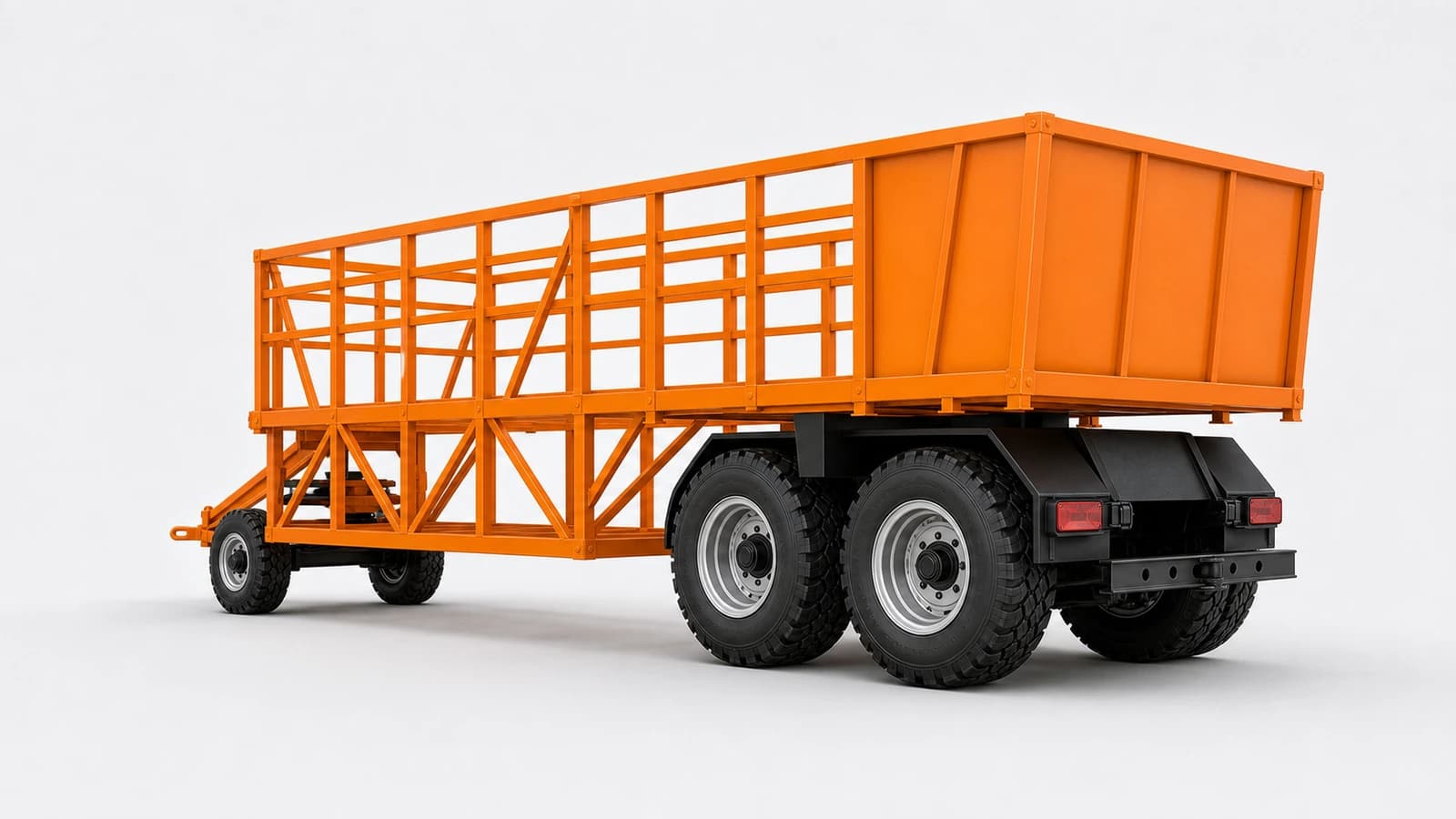

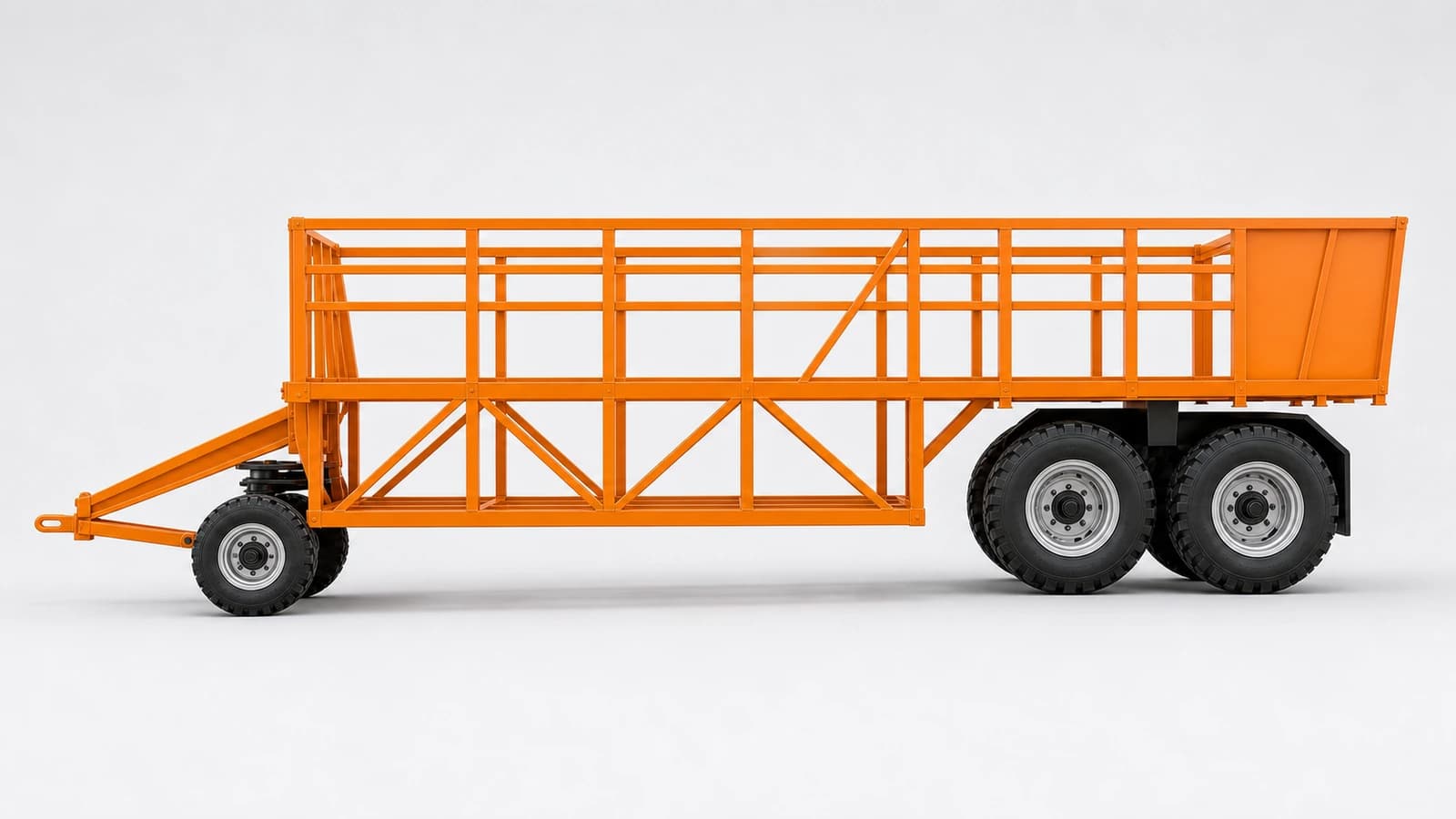

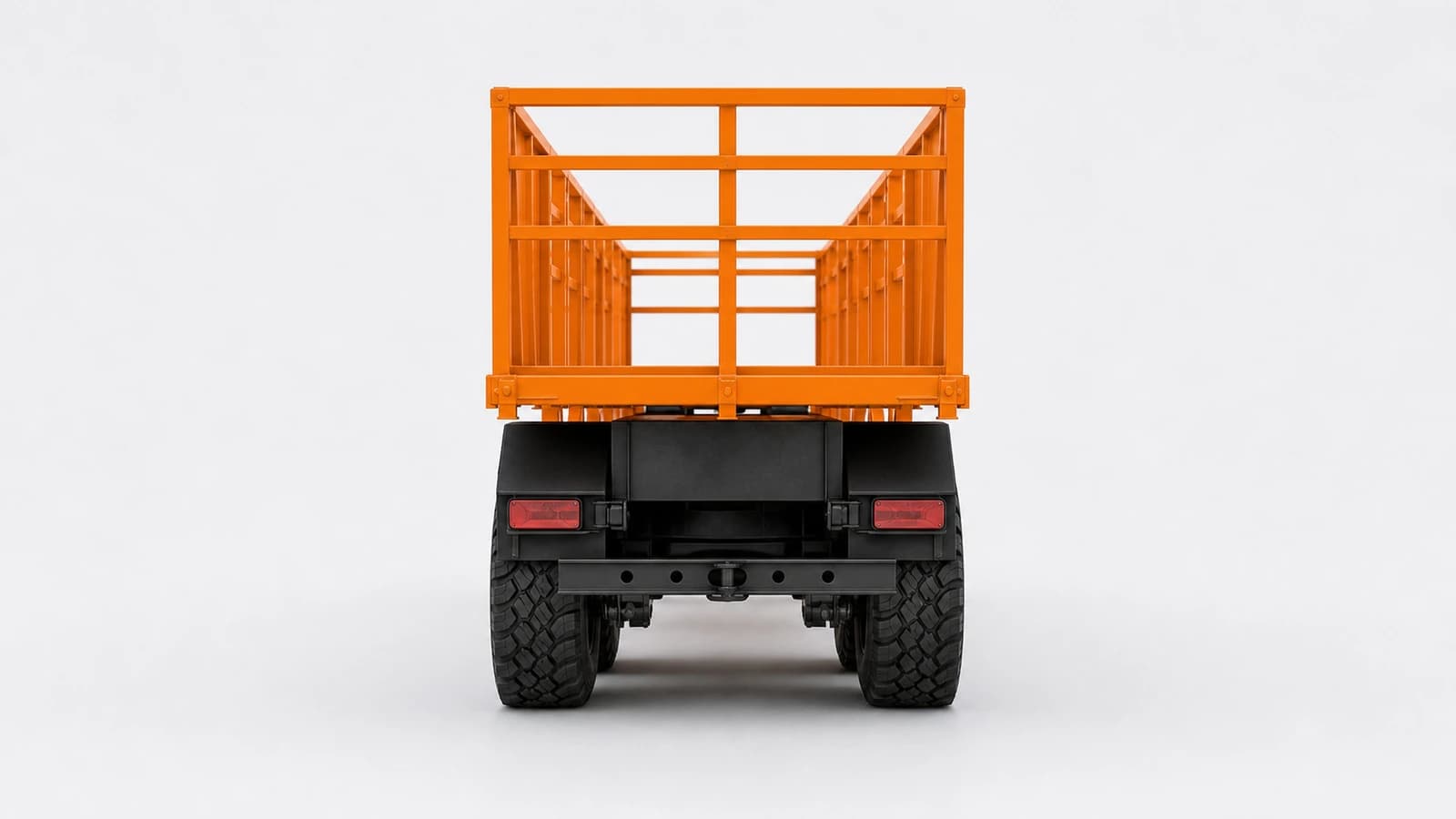

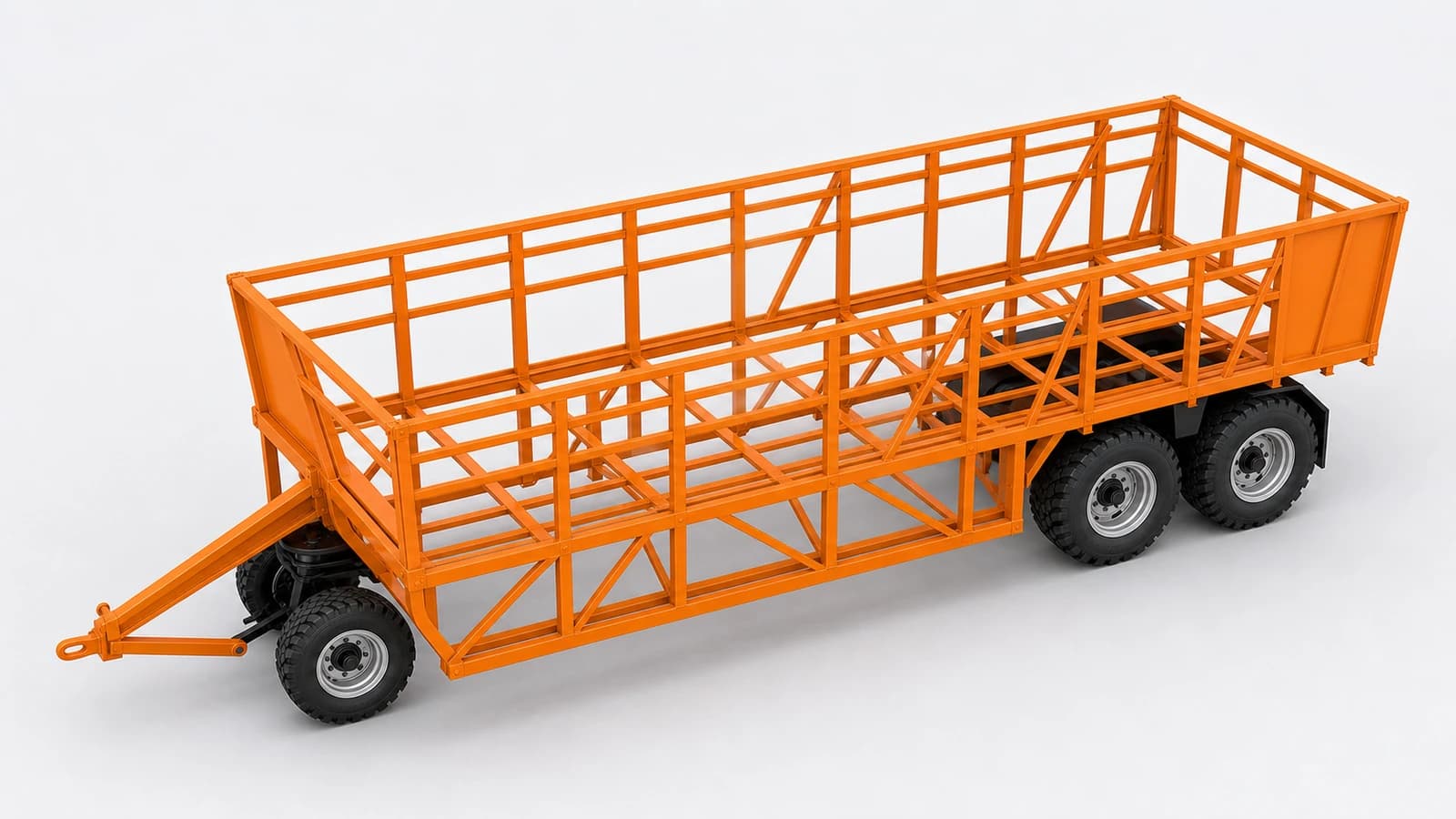

Sugar Cane Trailer
Sugar Cane Transport Equipment
Starting from $23,200
High posts, skeletal sides or a high-volume body, with optional spiller beams and chains, tipping or high-roll-bin arrangements
At a glance
- Reference Payload
- 40,000 kg
- Body / Cargo Volume
- 75 m³
- Technical Gross Trailer Mass
- 48,000 kg
- Overall Length
- 13,000 mm
- Loading Deck Length
- 12,800 mm
- Number of Axles
- 3 axles
Best suited to
high-volume transport of whole-stick or chopped cane from fields or loading zones to mills
How it differs
Difference from standard model: this is the only formal variant; coupling and unloading arrangements are confirmed per order
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 13,000 mm | Fixed |
| Overall Width | 2,600 mm | Fixed |
| Overall Height | 4,300 mm | Fixed |
Cargo Space & Deck
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Deck Length | 12,800 mm | Fixed |
| Sidewall / Fence Height | 2,000 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 40,000 kg | Fixed |
| Reference Tare Weight | 8,000 kg | Fixed |
| Technical Gross Trailer Mass | 48,000 kg | Fixed |
| Body / Cargo Volume | 75 m³ | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 13,000 kg | Fixed |
| Reference Axle Brand | FUWA / BPW or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Heavy-duty mechanical leaf spring | Fixed |
| Brake Type | Drum brakes | Fixed |
| ABS / EBS | ABS 4S/2M | Fixed |
| Tyre Size | 12R22.5 | Fixed |
| Number of Tyres | 12 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 3.5 in bolt-in; drawbar form confirmed per order | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Primary Chassis Material | Q345B / S355 high-strength steel | Fixed |
| Main Beam Height | 500 mm | Fixed |
| Floor / Deck Material | Open skeletal floor with high stakes and mesh panels | Fixed |
| Body / Vessel Material | Tall stake skeleton with perforated/mesh side panels | Fixed |
| Corrosion Protection & Paint | Shot blasting + epoxy primer + polyurethane topcoat | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Discharge / Unloading Method | Crane loading/unloading; side-tip/spiller chains optional | Fixed |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Design / Approval Reference | South Africa 56 t combination or Brazil CONTRAN dimension package, country-specific | Fixed |
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Cargo envelope, welfare rules, securing system, roof/route height; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Cargo envelope, welfare rules, securing system, roof/route height; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Cargo envelope, welfare rules, securing system, roof/route height; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Cargo envelope, welfare rules, securing system, roof/route height; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Inspection records match the unit
Final vehicle or assembly inspection is recorded against the unit identification, so the report can be matched to the product that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
