HC-03-S03

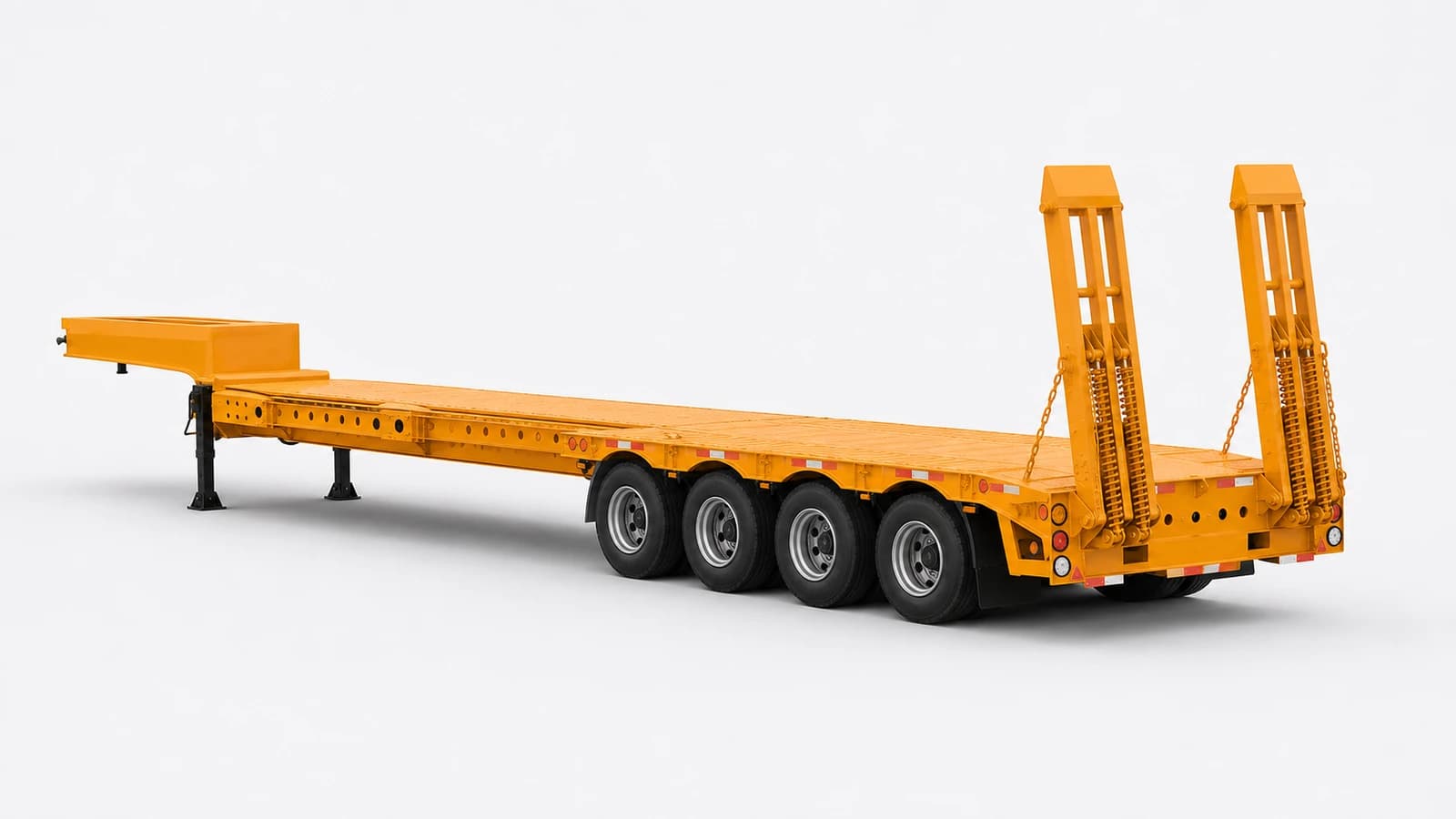

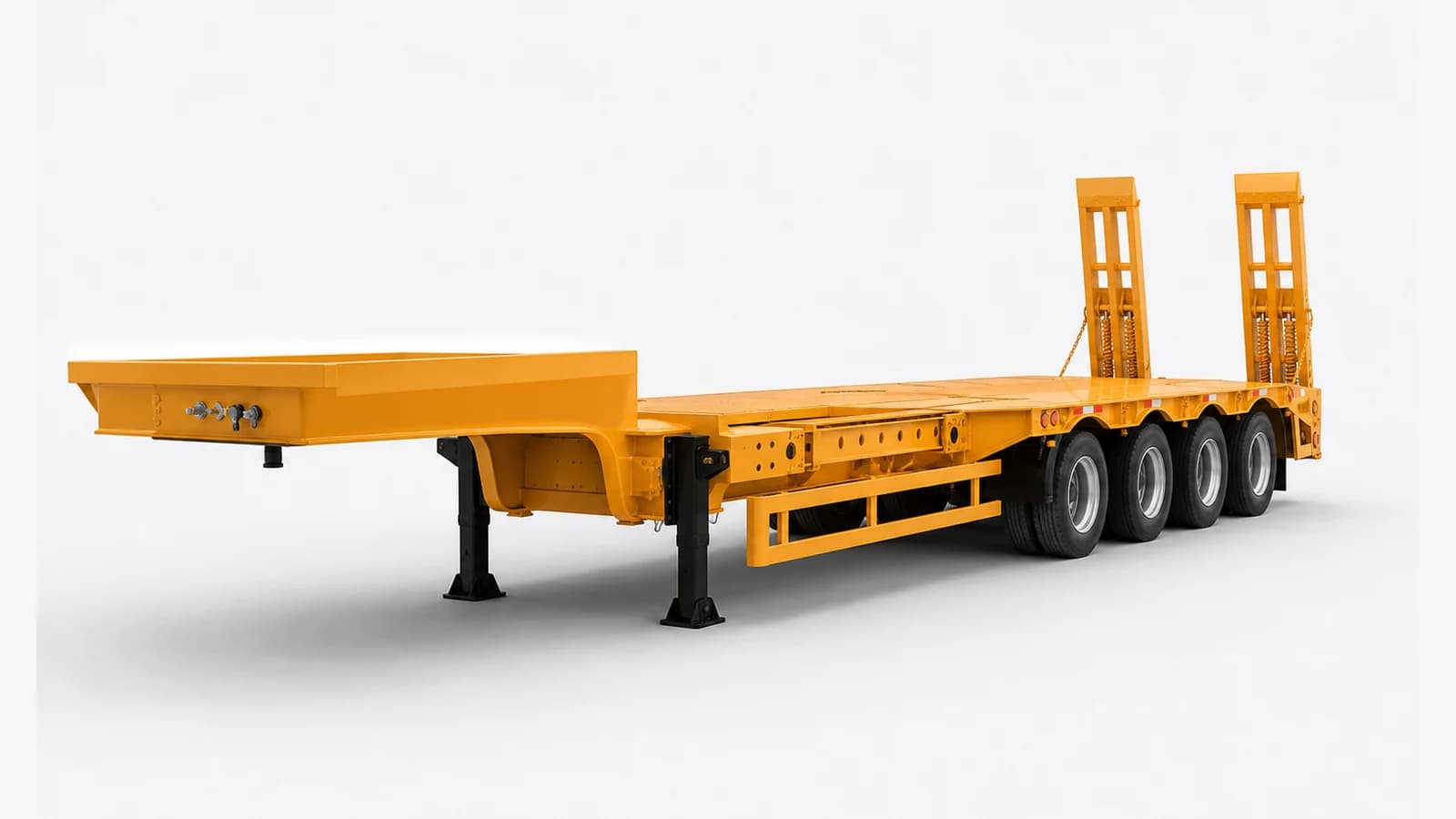

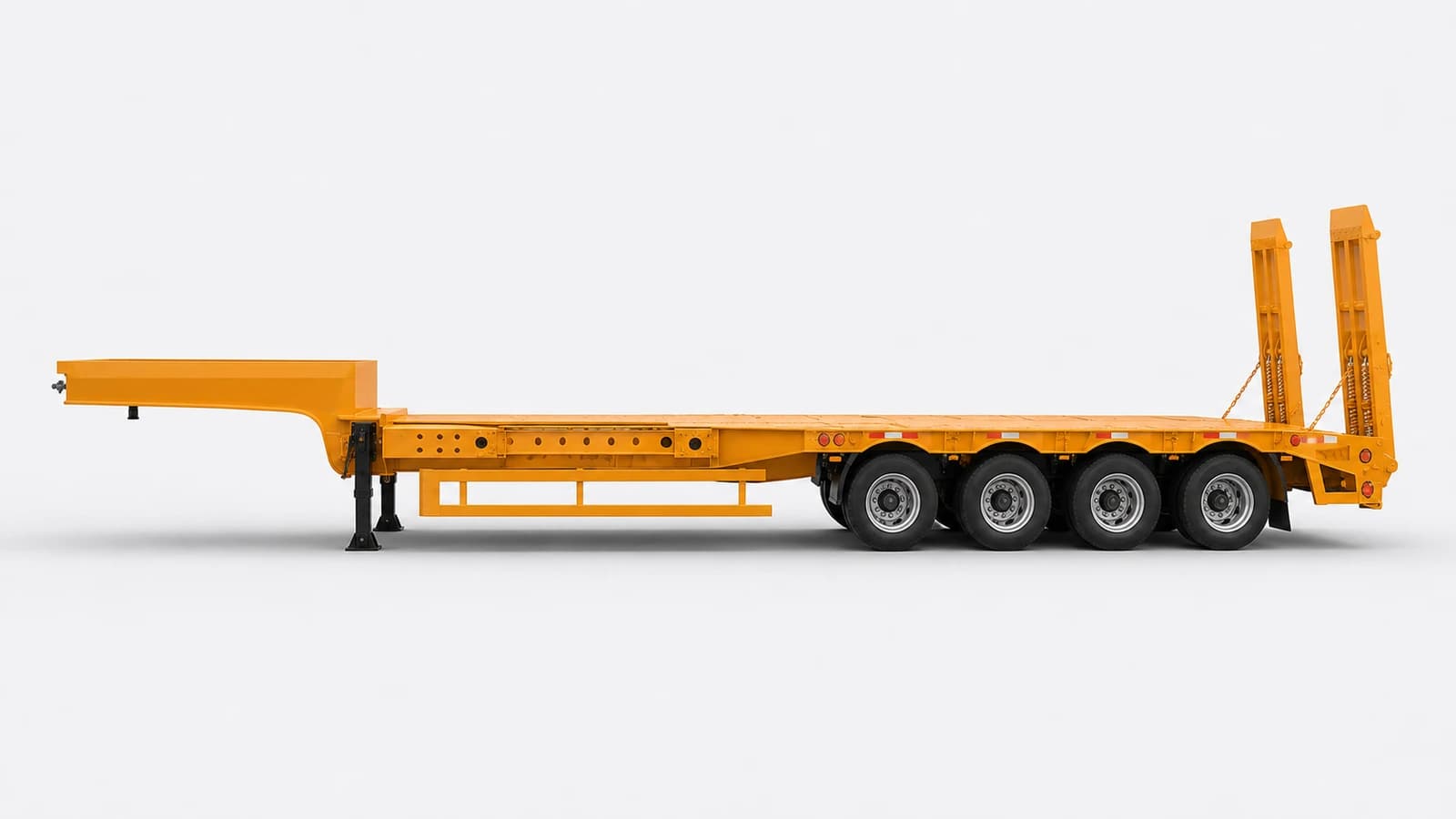

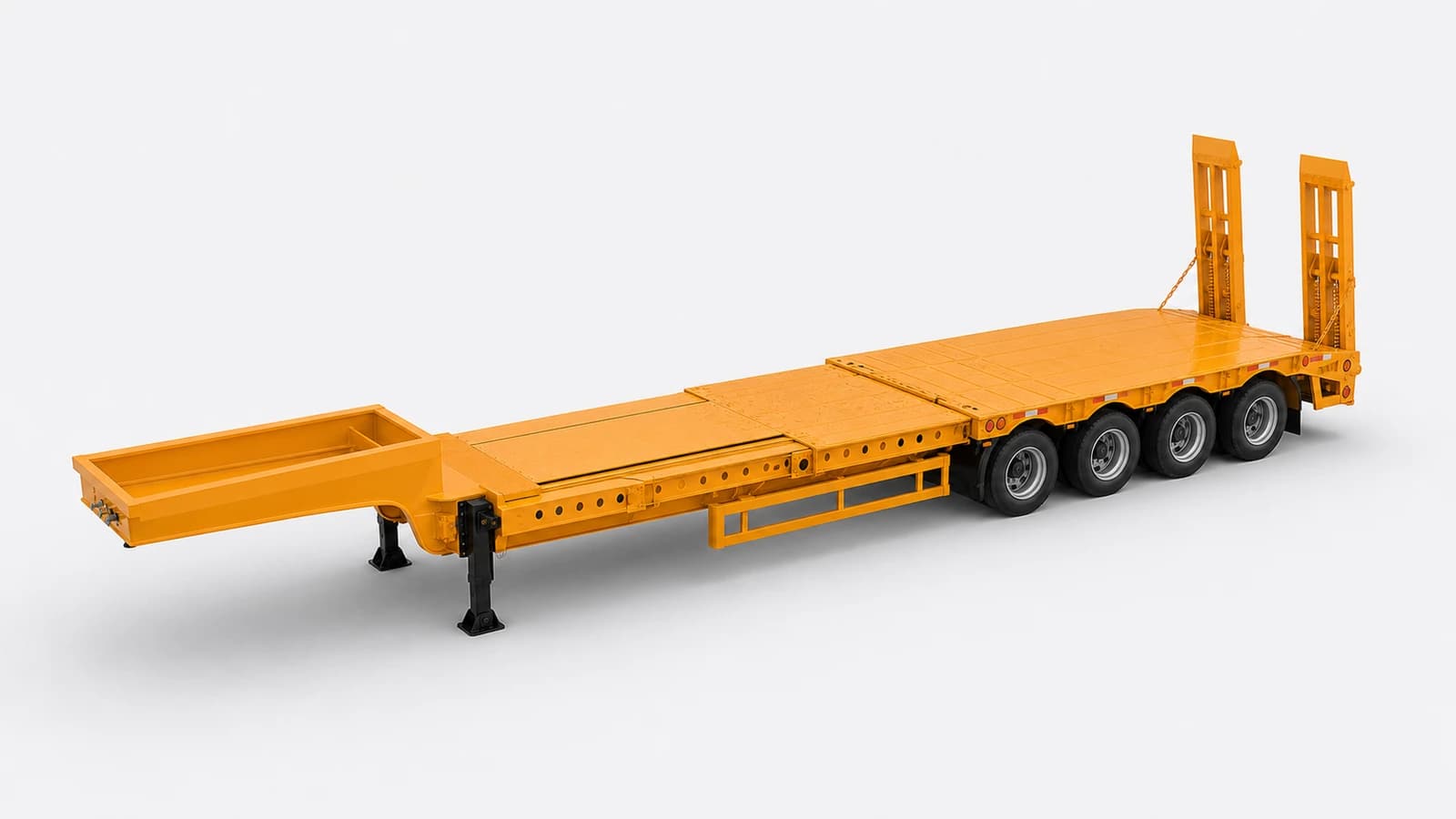

Extendable Low-loader Semi-trailer
Starting from $14,500
A low loading deck extends longitudinally while retaining rear-ramp loading
At a glance
- Reference Payload
- 28,850–31,250 kg
- Technical Gross Trailer Mass
- 42,000 kg
- Overall Length
- 13,190 mm
- Loading Deck Length
- 9,240 mm
- Maximum Extension
- 3,500–9,000 mm
- Deck Height (Loaded)
- 770 mm
Best suited to
long machinery, structures, wind components and tall cargo
How it differs
Difference from a fixed low-bed: greater length range; Difference from a detachable-gooseneck model: loading normally remains from the rear
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 13,190 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
Cargo Space & Deck
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Deck Length | 9,240 mm | Fixed |
| Maximum Extension | 3,500–9,000 mm | Extension Stages |
| Loading Deck Width | 3,150 mm2,550 mm base plus 600 mm lateral extension. | Fixed |
| Deck Height (Loaded) | 770 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,150 mm | Fixed |
| Wheelbase | 7,800 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 28,850–31,250 kg | Extension Stages |
| Reference Tare Weight | 10,750–11,950 kg | Extension Stages |
| Technical Gross Trailer Mass | 42,000 kg | Fixed |
| Kingpin Load | 18,000 kg | Fixed |
| Axle-group Load | 24,000 kg | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 8,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Disc brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 205/65 R17.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 28 t lifting / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Primary Chassis Material | S700MC high-strength telescopic beams | Fixed |
| Floor / Deck Material | 45 mm hardwood deck | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Extension Arrangement | Single-stage extension, 3,500 mm / Single extension / Double extension with staged locking | Extension Stages |

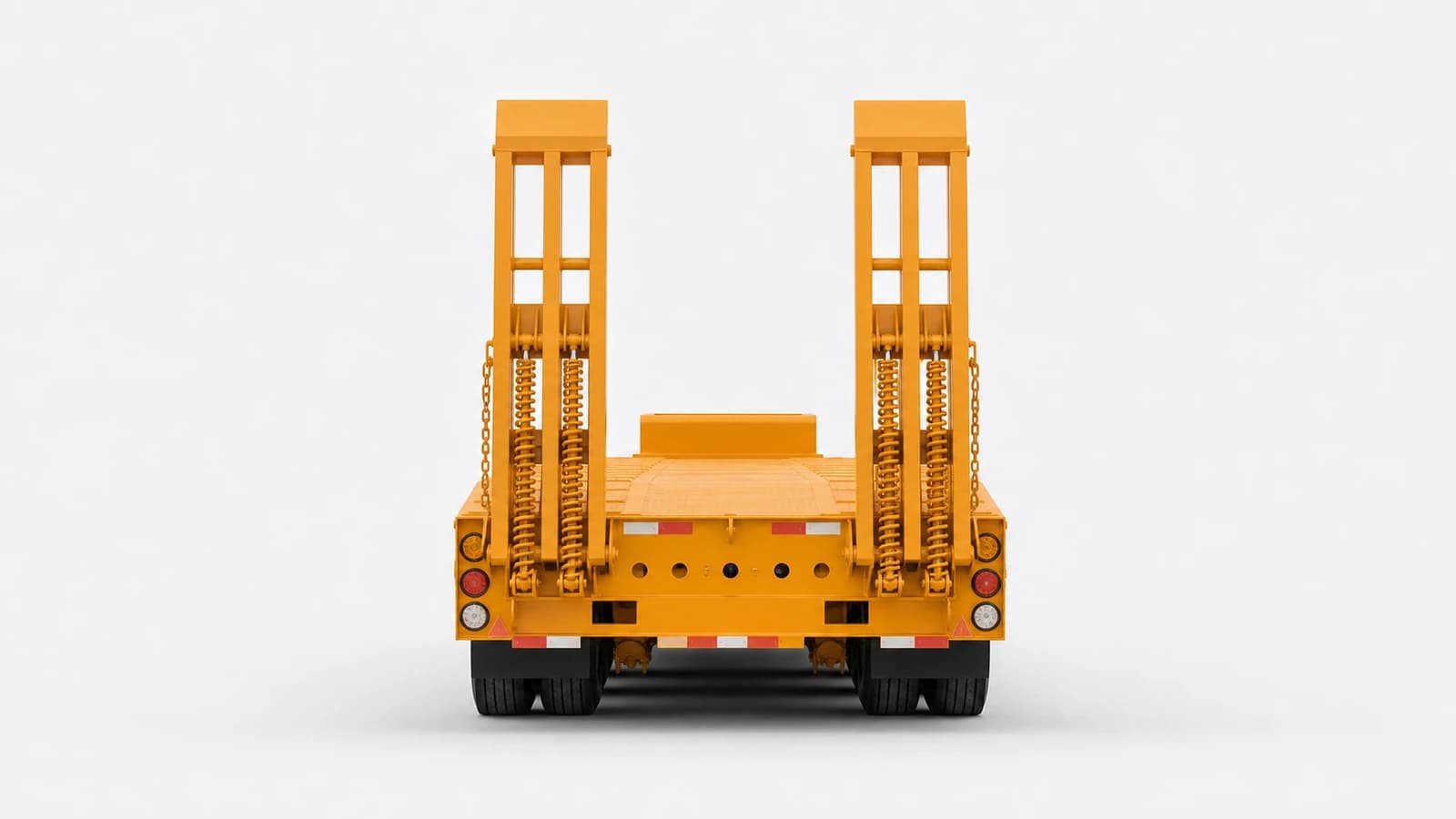

| Loading Ramps | Detachable aluminium loading ramps | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Extension Stages
Single Extension
Single-stage extension has fewer mechanisms and locking points
Best for: moderately overlength cargo and common extension ranges
If omitted: double extension covers longer loads, but makes the frame, operation and maintenance more complex.
Double Extension
Double-stage extension greatly increases deck-length range
Best for: wind components, long beams and very long project cargo
If omitted: single extension is lighter, stiffer and easier to operate, but reaches a shorter maximum length.
On our sample Maximum Extension 3,500–9,000 mm
Changes: Maximum Extension, Extension Arrangement, Reference Payload, Reference Tare Weight
Confirmed at inquiry: Provide cargo dimensions, point loads, extension cases, turning radius and route envelope
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: Point loads, deck height, extension, route survey, permits and swept path; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
