TB-02-S01

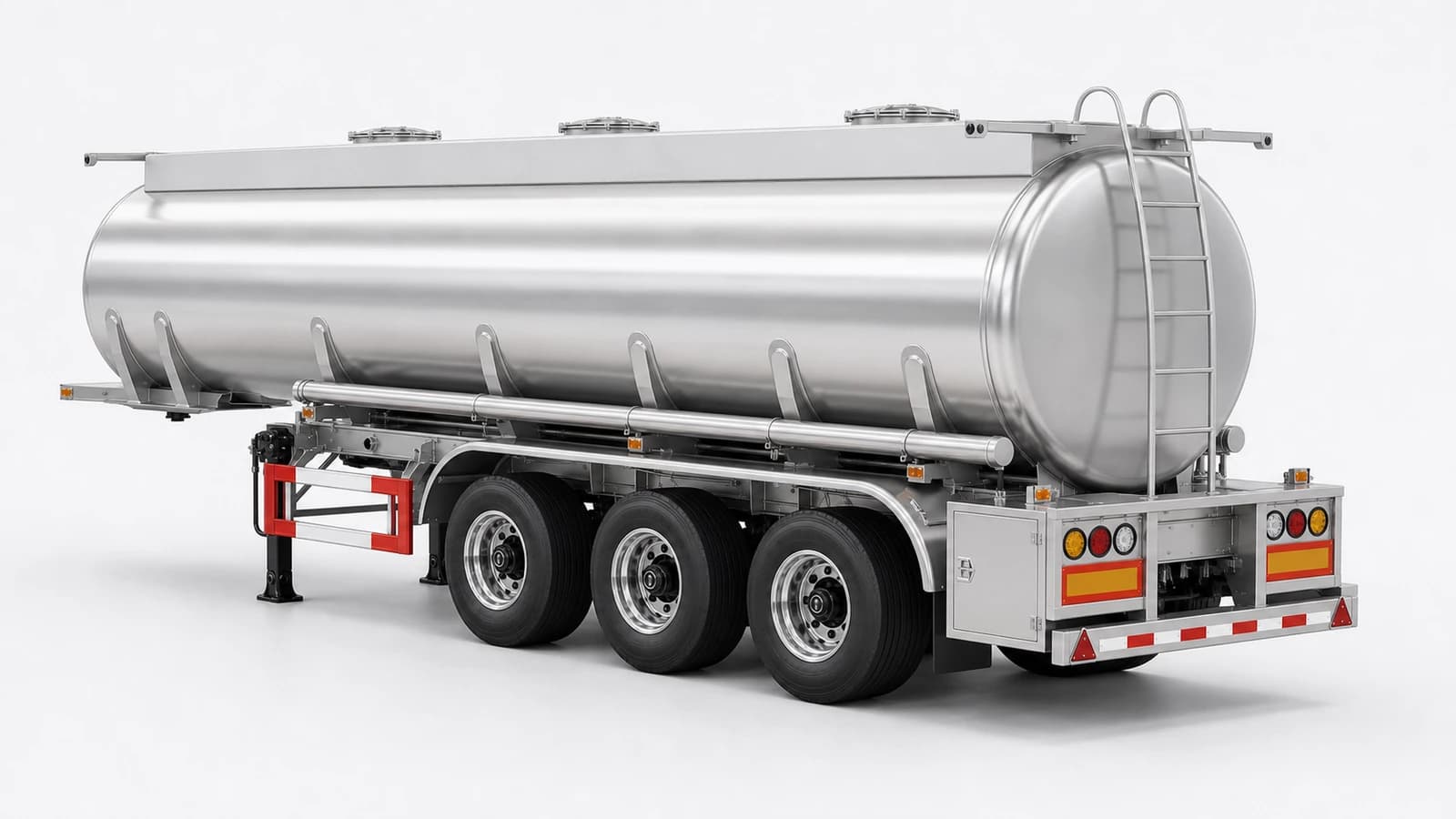

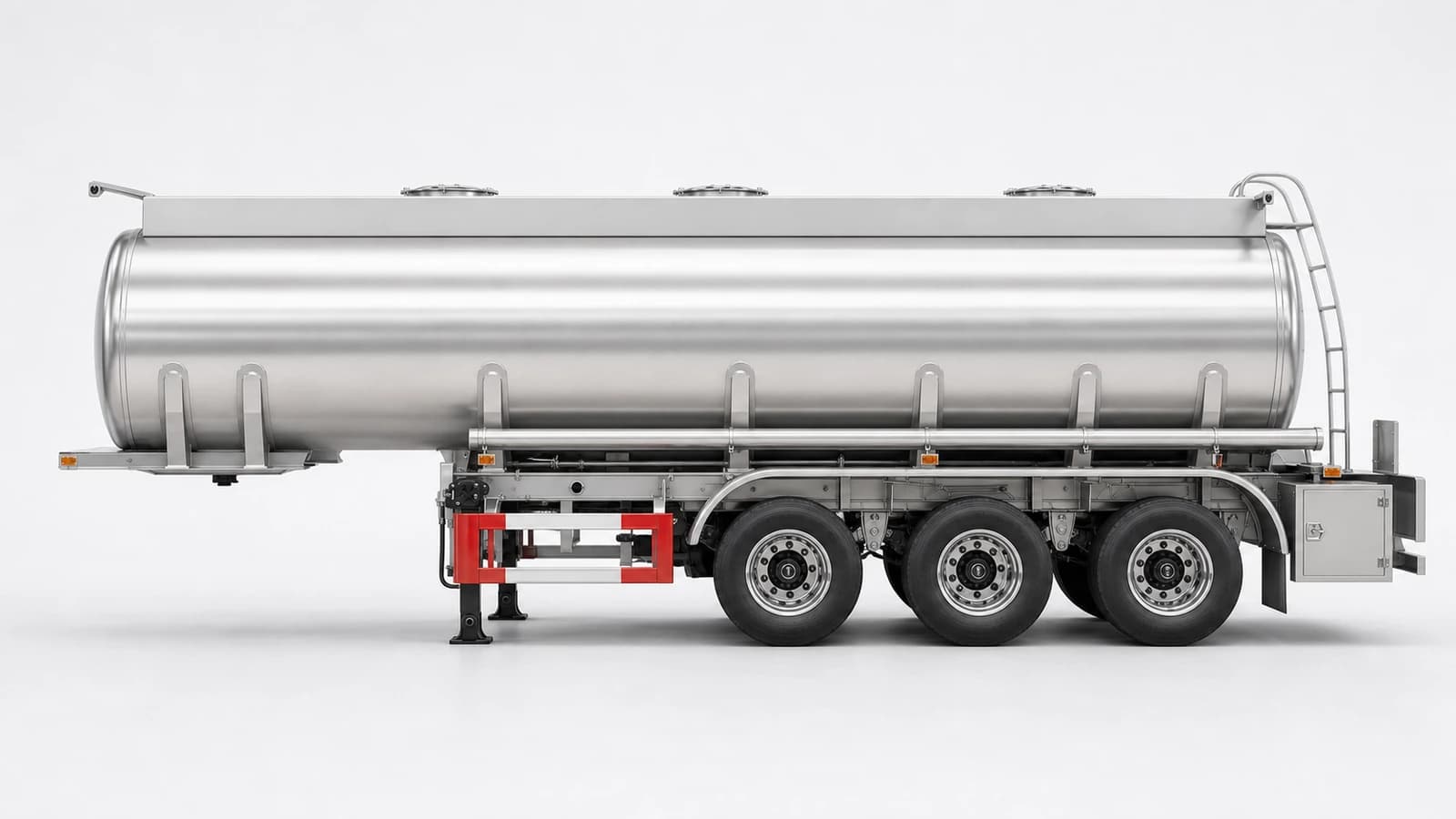

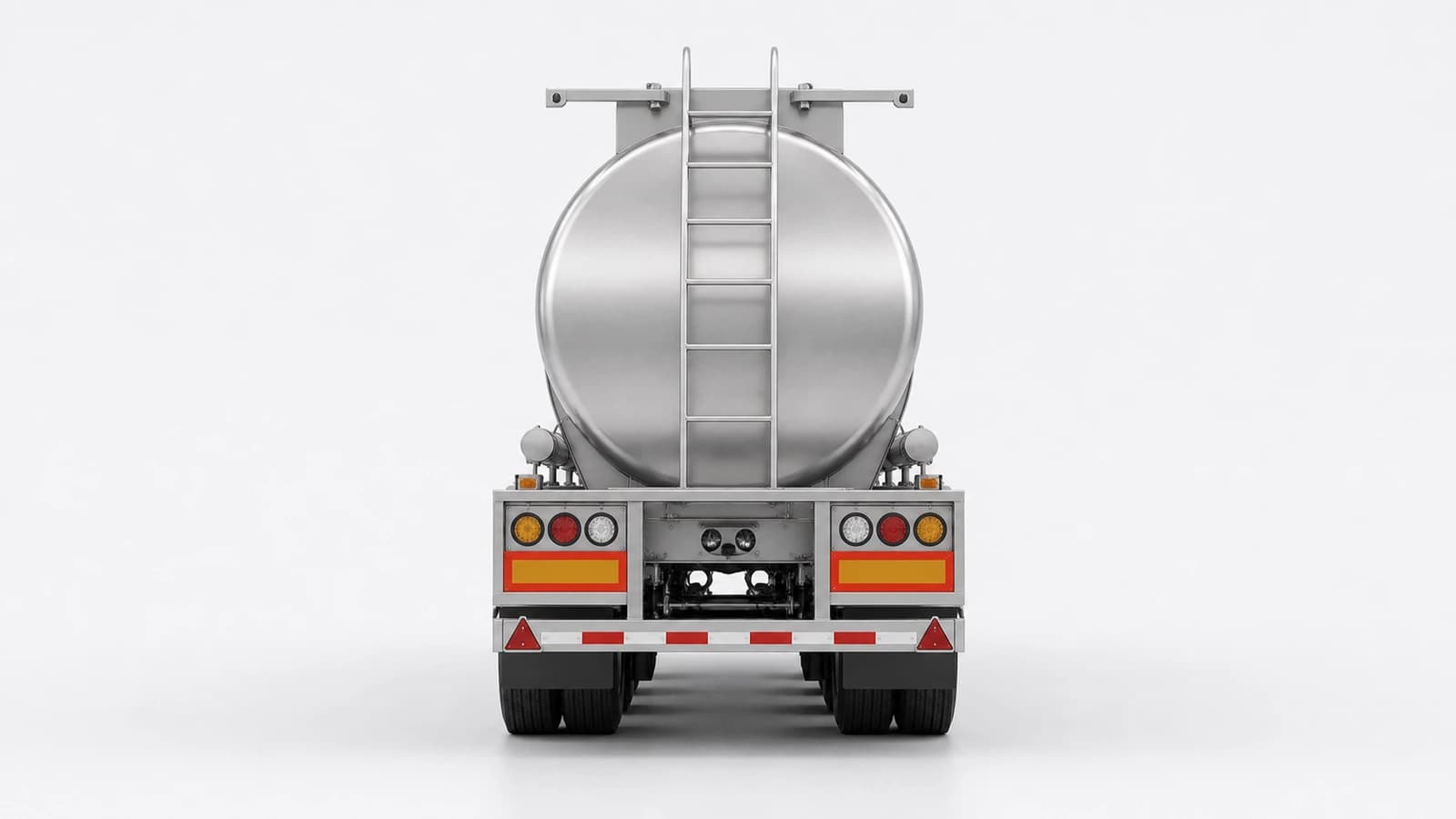

Chemical Tanker Semi-trailer
Starting from $16,200
Tank material, lining, seals and piping are selected for medium compatibility
At a glance
- Reference Payload
- 32,200 kg
- Tank Geometric Volume
- 28,500–30,000 L
- Technical Gross Trailer Mass
- 39,000 kg
- Working Pressure
- 2 bar
- Overall Length
- 10,530 mm
- Number of Axles
- 3 axles
Best suited to
acids, alkalis, solvents and other chemical liquids
How it differs
Difference from a fuel tanker: higher corrosion-resistance and cargo-isolation requirements, so selection must follow the exact product and regulations
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 10,530 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,685 mm | Fixed |
Tank Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Tank Diameter | 2,000 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,220 mm | Fixed |
| Wheelbase | 5,900 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 32,200 kg | Fixed |
| Reference Tare Weight | 6,800–7,700 kg | Tank Internal Protection |
| Technical Gross Trailer Mass | 39,000 kg | Fixed |
| Kingpin Load | 12,000 kg | Fixed |
| Axle-group Load | 27,000 kg | Fixed |
| Tank Geometric Volume | 28,500–30,000 L | Tank Internal Protection |
| Number of Compartments | 1 compartment | Fixed |
Pressure & Temperature
| Parameter | Reference value | Varies with |
|---|---|---|
| Working Pressure | 2 bar | Fixed |
| Design Pressure | 4 bar | Fixed |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 9,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Disc brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 385/65 R22.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 25 t dynamic / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | Stainless cylindrical vessel; 100 mm insulation optional | Fixed |
| Tank Material Grade | 1.4571 / 316Ti stainless steel / 316L / 316Ti or higher-alloy material by cargo / 316L / 316Ti stainless steel | Medium Compatibility, Tank Material |
| Tank Shell Thickness | 3–4 mm | Medium Compatibility |
| Corrosion Protection & Paint | Cleanable corrosion-resistant vessel finish plus protected chassis | Fixed |
| Lining / Internal Finish | 2B internal finish, pickled and passivated / Rubber / PE / PTFE / FRP lining by compatibility review | Tank Internal Protection |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Discharge Outlet / Line | DN100 bottom valve to DN80 TW coupling | Fixed |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Compatible Cargo | Chemical liquids validated by material-compatibility review / Corrosive chemicals subject to substance-by-substance review | Medium Compatibility |
| Tank Code / Dangerous-goods Class | ADR L4BH reference | Fixed |
| Emergency Shut-off & Overfill | Pneumatic bottom valve, emergency shut-off and overfill protection | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Medium Compatibility
Acids, Alkalis & Corrosive Media
Materials, lining, seals and valves are validated for acids, alkalis or strongly corrosive media
Best for: a defined chemical and concentration range
If omitted: only media proven compatible with the base construction may be carried—corrosion resistance must never be assumed from the product name.
Changes: Tank Material Grade, Tank Shell Thickness, Reference Compatible Cargo
Confirmed at inquiry: Provide cargo, SDS, density, temperature, loading/discharge pressure and destination code
Tank Internal Protection
Lined
Internal lining isolates cargo from the structural tank material
Best for: chemicals incompatible with the base metal or needing contamination control
If omitted: cargo contacts the tank material directly, which is simpler but requires proven compatibility.
On our sample Tank Geometric Volume 28,500–30,000 L
Changes: Tank Geometric Volume, Reference Tare Weight, Lining / Internal Finish
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Tank Material
Stainless Steel
Stainless-steel construction balances corrosion resistance, cleanability and medium flexibility
Best for: chemicals validated against the selected grade
If omitted: lined carbon steel or other materials may be more economical, but cargo range and maintenance differ.
Changes: Tank Material Grade
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Vessels are certified by third parties
Pressure tests are witnessed and the certificate carries the chassis number of the unit, so it can be matched to the trailer that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
