TB-03-S03

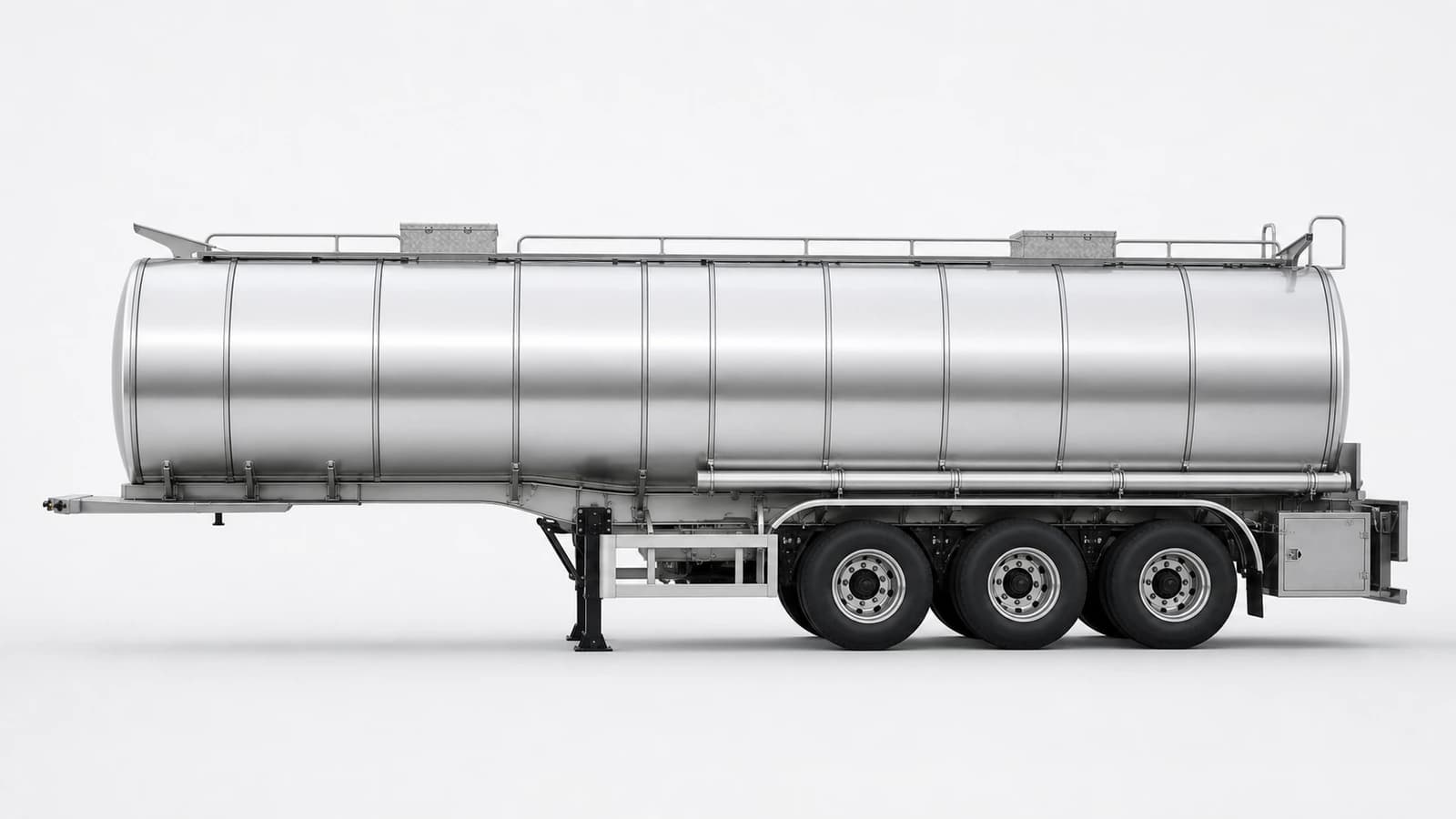

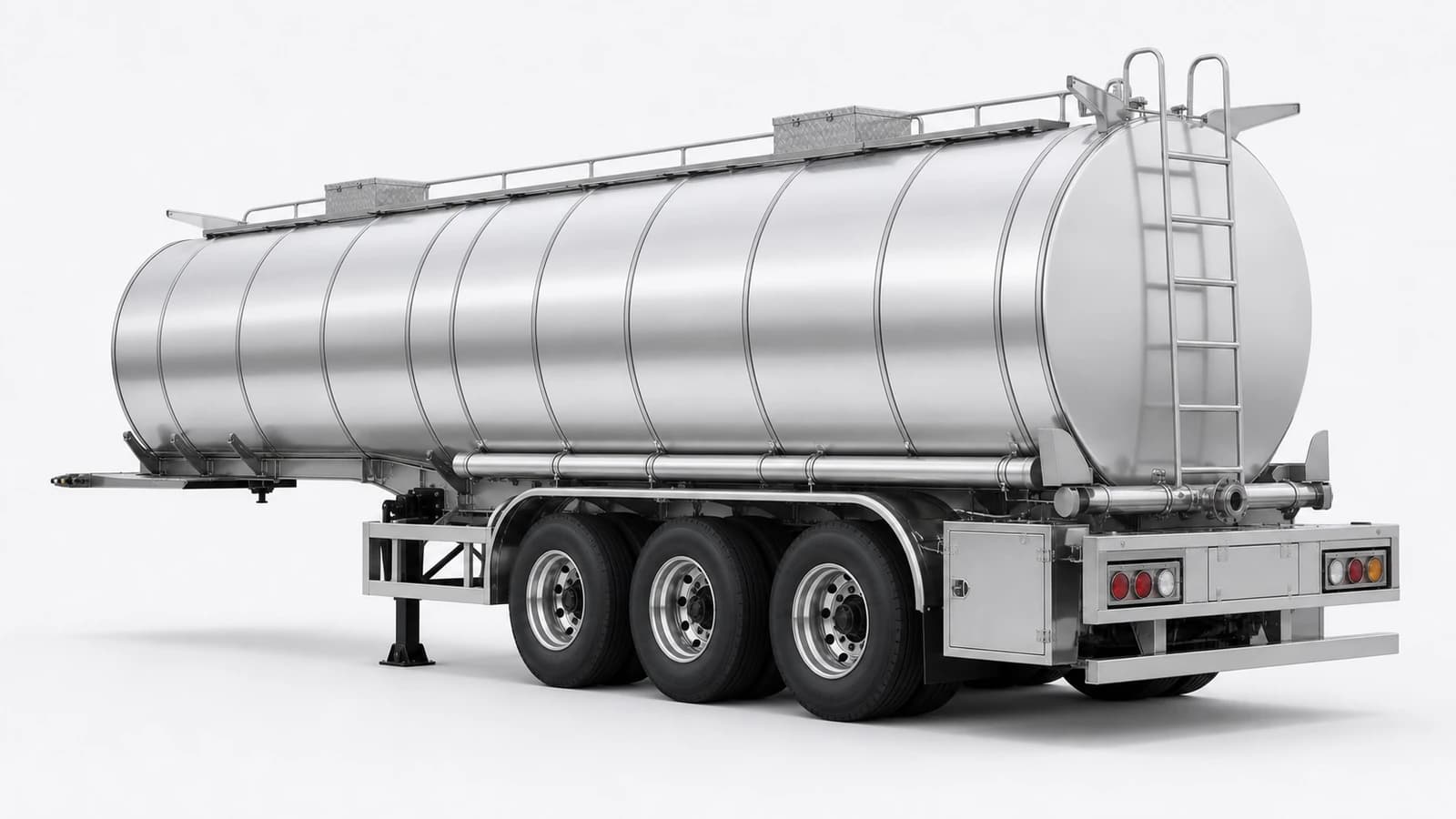

Food-grade Liquid Tanker Semi-trailer
Starting from $16,200
Food-contact materials, sanitary welding, cleanable construction and contamination control
At a glance
- Reference Payload
- 32,650–33,250 kg
- Tank Geometric Volume
- 30,000 L
- Technical Gross Trailer Mass
- 39,000 kg
- Overall Length
- 10,300 mm
- Number of Axles
- 3 axles
- Suspension
- Air suspension
Best suited to
milk, edible oil, juice and other food liquids
How it differs
Difference from a chemical tanker: prioritises hygiene, validated cleaning and cross-contamination prevention rather than corrosion resistance alone
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 10,300 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,650 mm | Fixed |
Tank Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Tank Diameter | 2,000 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,220 mm | Fixed |
| Wheelbase | 5,800 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 32,650–33,250 kg | Compartment Layout |
| Reference Tare Weight | 5,750–6,050 kg | Compartment Layout |
| Technical Gross Trailer Mass | 39,000 kg | Fixed |
| Kingpin Load | 12,000 kg | Fixed |
| Axle-group Load | 27,000 kg | Fixed |
| Tank Geometric Volume | 30,000 L | Fixed |
| Number of Compartments | 3–4 compartments | Compartment Layout |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 9,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Disc brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 385/65 R22.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 25 t dynamic / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | Food-grade stainless cylindrical vessel; insulation optional | Fixed |
| Tank Material Grade | 1.4301 / 304 stainless steel / 304 / 316L food-grade stainless steel | Compatible Cargo |
| Tank Shell Thickness | 2 mm | Fixed |
| Corrosion Protection & Paint | Cleanable corrosion-resistant vessel finish plus protected chassis | Fixed |
| Lining / Internal Finish | 2B internal finish with hygienically polished welds | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|

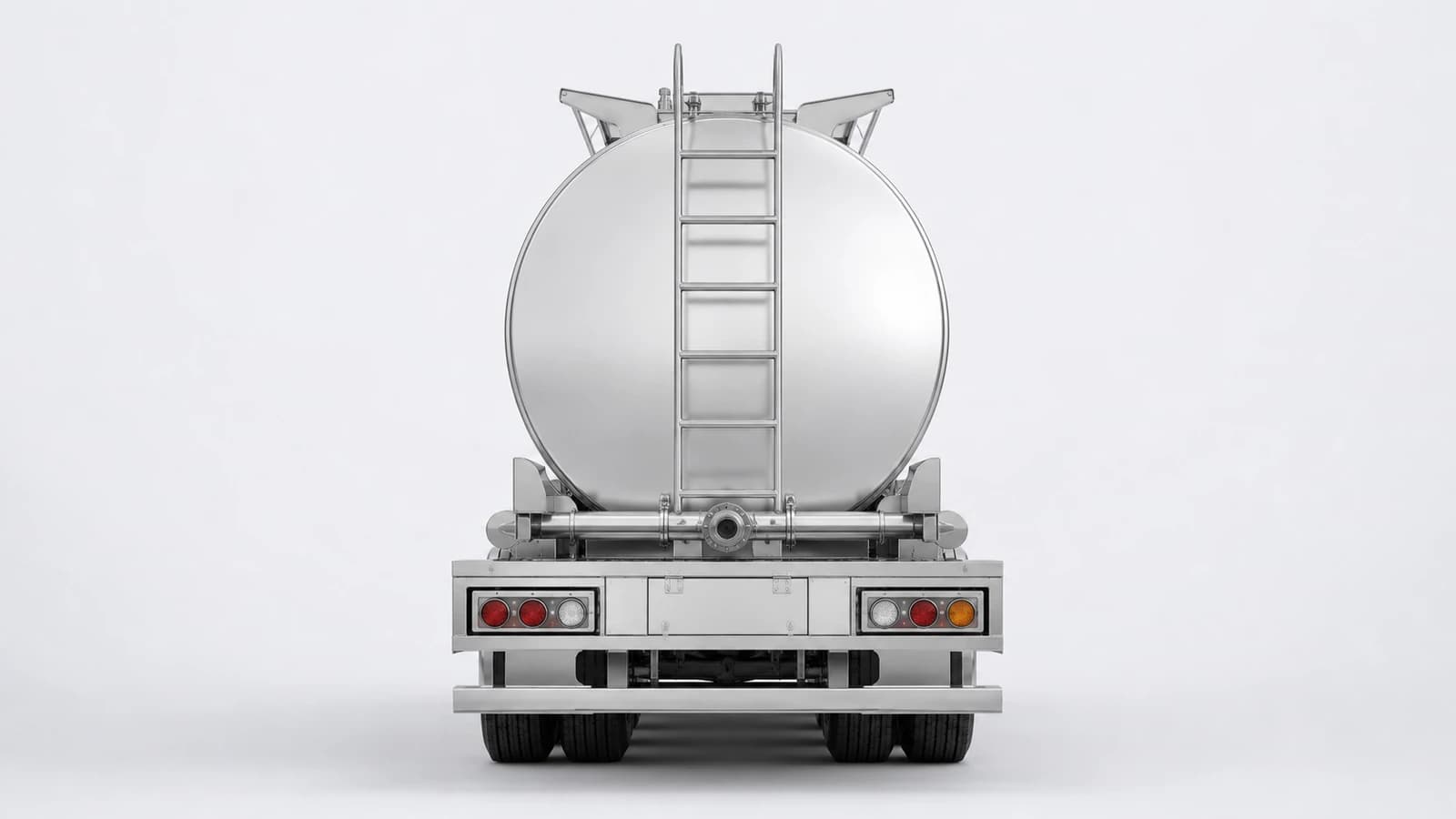

| Discharge Outlet / Line | DN80 sanitary rear discharge | Fixed |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Compatible Cargo | Edible oil, milk, juice and validated food liquids / Edible oils and validated food liquids | Compatible Cargo |
| Food Hygiene & Cleaning | CIP spray balls, sanitary quick couplings and drainable piping / Four compartments with independent CIP spray balls and sanitary manifold | Compartment Layout |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Compartment Layout
Multi-compartment
Multiple compartments separate food liquids or batches and reduce surge
Best for: multi-customer or multi-product delivery
If omitted: a single compartment is easier to clean, leaves less residue and uses volume better, but cannot segregate loads.
On our sample Number of Compartments 3–4 compartments
Changes: Number of Compartments, Reference Tare Weight, Reference Payload, Food Hygiene & Cleaning
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Compatible Cargo
Edible Oils
Seals, piping and cleaning arrangements suit edible-oil viscosity and food hygiene
Best for: vegetable oils and validated compatible fats
If omitted: the base food tanker may serve milk, juice or other products, but materials and cleaning must match the exact cargo.
Changes: Tank Material Grade, Reference Compatible Cargo
Confirmed at inquiry: Provide cargo, SDS, density, temperature, loading/discharge pressure and destination code
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Vessels are certified by third parties
Pressure tests are witnessed and the certificate carries the chassis number of the unit, so it can be matched to the trailer that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Other variants in this category
Same platform, different body or duty. Worth comparing before you settle on one.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
