TB-01-S01

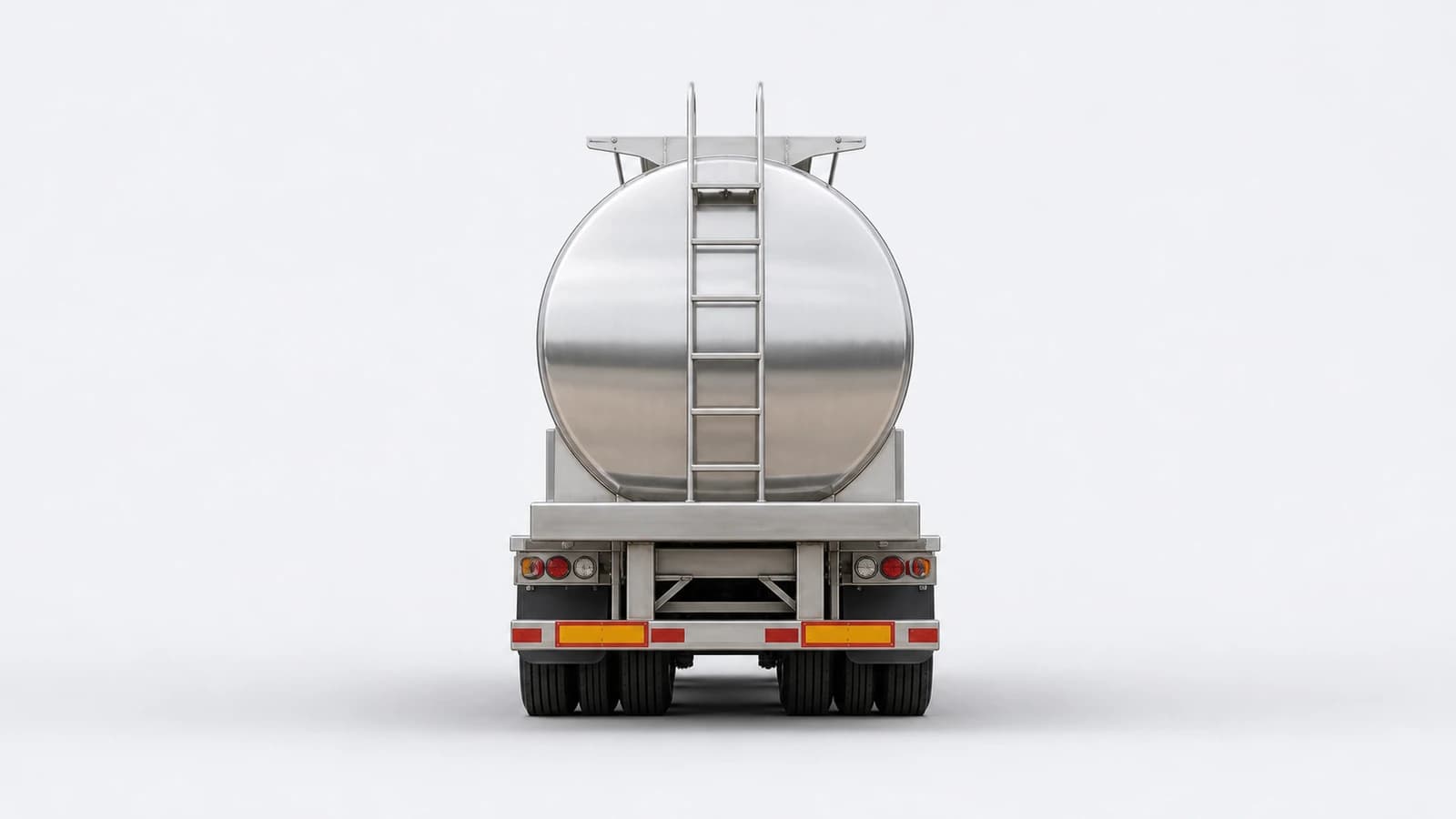

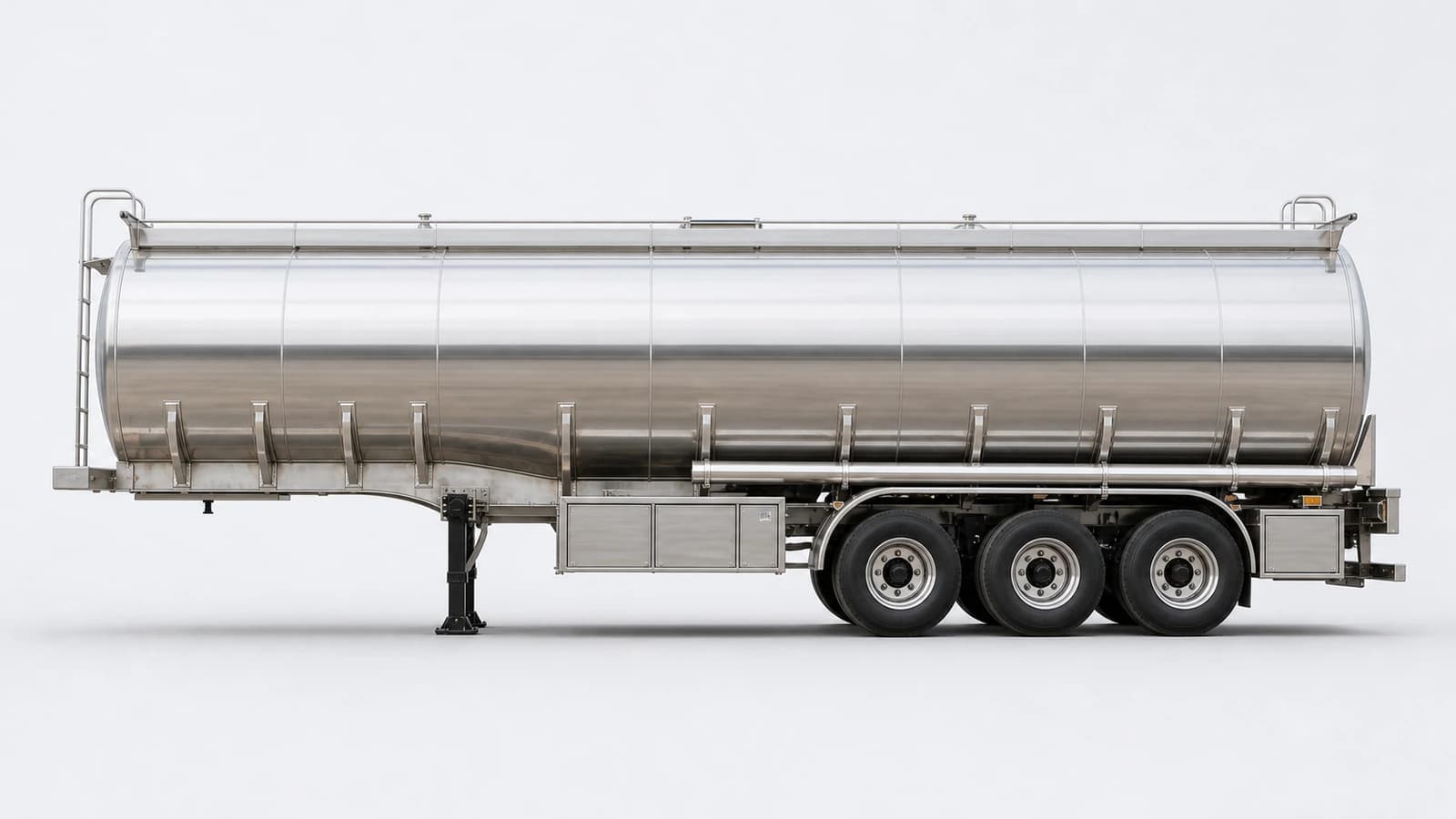

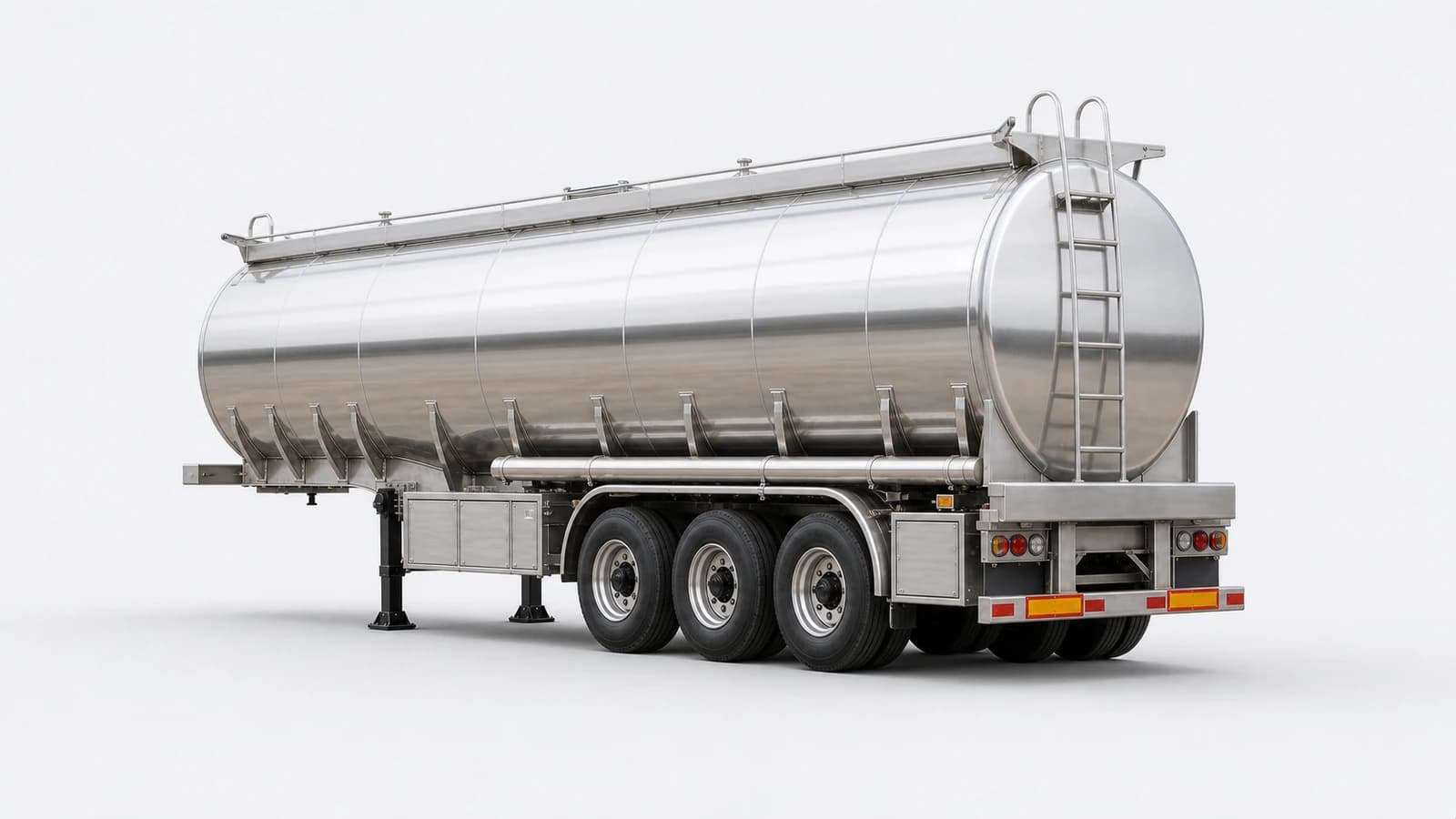

Fuel Tanker Semi-trailer
Starting from $16,200
Petroleum-service tank, valves, loading systems and safety equipment, with optional compartments and aluminium construction
At a glance
- Reference Payload
- 32,450–34,200 kg
- Tank Geometric Volume
- 39,000 L
- Technical Gross Trailer Mass
- 39,000 kg
- Overall Length
- 11,420 mm
- Number of Axles
- 3 axles
- Suspension
- Air suspension
Best suited to
gasoline, diesel and compatible petroleum liquids
How it differs
Difference from a chemical tanker: optimised for fuel logistics and dangerous-goods rules, not a universal chemical tank
Reference specification
Pre-inquiry reference values taken from our standard sample of this product. A figure shown as a range moves with the configuration named beside it. Your contractual figures are the ones on the drawing and bill of materials issued after inquiry.
Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Overall Length | 11,420 mm | Fixed |
| Overall Width | 2,550 mm | Fixed |
| Overall Height | 3,680 mm | Fixed |
Tank Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Tank Diameter | 2,350 mm | Fixed |
Coupling Dimensions
| Parameter | Reference value | Varies with |
|---|---|---|
| Fifth-wheel Height | 1,220 mm | Fixed |
| Wheelbase | 6,700 mm | Fixed |
Mass & Capacity
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Payload | 32,450–34,200 kg | Compartment Layout, Tank Material |
| Reference Tare Weight | 4,800–6,100 kg | Compartment Layout, Tank Material |
| Technical Gross Trailer Mass | 39,000 kg | Fixed |
| Kingpin Load | 12,000 kg | Fixed |
| Axle-group Load | 27,000 kg | Fixed |
| Tank Geometric Volume | 39,000 L | Fixed |
| Number of Compartments | 5–6 compartments | Compartment Layout |
Running Gear
| Parameter | Reference value | Varies with |
|---|---|---|
| Number of Axles | 3 axles | Fixed |
| Technical Capacity per Axle | 9,000 kg | Fixed |
| Reference Axle Brand | BPW / SAF or equivalentBrand is a supply-chain reference. | Fixed |
| Suspension | Air suspension | Fixed |
| Brake Type | Disc brakes | Fixed |
| ABS / EBS | EBS 2S/2M with roll stability | Fixed |
| Tyre Size | 385/65 R22.5 | Fixed |
| Number of Tyres | 6 tyres | Fixed |
| Axle Spacing | 1,310 mm | Fixed |
Coupling & Support
| Parameter | Reference value | Varies with |
|---|---|---|
| Kingpin Size | 2 in bolt-in; 3.5 in optional | Fixed |
| Landing Gear | Two-speed, 25 t dynamic / 50 t static | Fixed |
Electrical System
| Parameter | Reference value | Varies with |
|---|---|---|
| System Voltage | 24 V | Fixed |
| Lighting | LED lamps, destination-approved | Fixed |
Structure & Materials
| Parameter | Reference value | Varies with |
|---|---|---|
| Body / Vessel Material | Aluminium elliptical vessel, 5 compartments | Fixed |
| Tank Material Grade | EN AW-5182-equivalent aluminium / 5083-H111 aluminium alloy | Tank Material |
| Tank Shell Thickness | 5 mm | Fixed |
| Corrosion Protection & Paint | Cleanable corrosion-resistant vessel finish plus protected chassis | Fixed |
Loading, Unloading & Operation
| Parameter | Reference value | Varies with |
|---|---|---|
| Loading Method | Top and bottom loading | Fixed |
| Discharge Outlet / Line | API bottom discharge system with 4 in couplings / Six independent API bottom valves and segregated manifold | Compartment Layout |
Safety & Compliance
| Parameter | Reference value | Varies with |
|---|---|---|
| Reference Compatible Cargo | Petrol, diesel and validated compatible refined fuels | Fixed |
| Tank Code / Dangerous-goods Class | ADR L4BH reference; destination approval required | Fixed |
| Emergency Shut-off & Overfill | Pneumatic bottom valves, overfill protection and emergency shut-off | Fixed |
Buildable configurations
What can be specified on this product, and what each choice changes. Combinations are confirmed by engineering against your axle-load limits and destination regulations before they are quoted.
Compartment Layout
Multi-compartment
Multiple compartments separate fuel grades and reduce liquid surge
Best for: multi-product delivery and multi-stop routes
If omitted: a single compartment is simpler and uses volume more efficiently, but cannot segregate different products.
On our sample Number of Compartments 5–6 compartments
Changes: Number of Compartments, Reference Tare Weight, Reference Payload, Discharge Outlet / Line
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Tank Material
Aluminium
Aluminium tank reduces tare weight and increases payload with good corrosion resistance
Best for: petroleum transport prioritising payload and fuel economy
If omitted: steel may cost less and be easier to repair locally, but weighs more.
On our sample Reference Tare Weight 4,800–6,100 kg
Changes: Reference Tare Weight, Reference Payload, Tank Material Grade
Confirmed at inquiry: Confirm volume split, materials, thickness design basis, cleaning and transfer connections
Specifying for your region
The same product is built differently for different markets. These are the running-gear and compliance points that decide the build, by destination.
- Africa
- Dust sealing, reinforced suspension, hot-climate hoses, larger tool/spare package. 3×13 t axles; heavy mechanical suspension; Drum + ABS 4S/2M; 12R22.5 / 315/80 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific homologation, axle/load and left/right-hand traffic review
- Middle East
- 50°C-class heat package, UV-resistant wiring/seals, sand protection and high-capacity cooling. 3×13 t axles; mechanical or air suspension; Drum + ABS; EBS for regulated/hazardous applications; 12R22.5 / 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country/GCC approval, 45 t combination and axle-spacing checks; dangerous-goods review
- Latin America
- Mixed-road reinforcement, corrosion package for coastal routes, local tyre/parts availability. 3×13 t axles; mechanical or air suspension; Drum + ABS; 295/80 R22.5 / 12R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; Country-specific type approval; Brazil CONTRAN baseline shown only and amendments must be verified
- Non-EU Eastern Europe
- -30°C cold-start/seal package, corrosion protection and winter electrical package. 3×9 t axles; air suspension; Disc/drum + EBS with roll stability; 385/65 R22.5Compliance: SDS/density, material compatibility, compartment split and discharge duty; EAC/ECE/ADR/ATP or national approval as applicable; check border and route rules
What you can verify before ordering
The plant is ours
Ask for a live walk-through of the welding line, the blasting chamber and the paint booth on the day you call. A trading company cannot do this on request.
Engineers answer, not a sales desk
Configuration questions are answered by the engineering team. If an answer needs a calculation, you get the calculation.
Vessels are certified by third parties
Pressure tests are witnessed and the certificate carries the chassis number of the unit, so it can be matched to the trailer that arrives.
Drawings are kept on file
The approved general arrangement drawing is archived against your chassis number for the life of the unit, which is what makes a spare part orderable years later.
Export paperwork is in house
Invoice, origin certificate, chassis number list and test certificates are issued by our own export desk, so a correction takes hours rather than a week.
Repeat batches stay identical
A follow-on order is built from the drawing you already approved, so parts interchange across your fleet instead of nearly fitting.
Other variants in this category
Same platform, different body or duty. Worth comparing before you settle on one.
Send your drawing or your load case
A sales engineer confirms the specification for this product against your route, axle-load limits and destination regulations, then returns a drawing and a delivered price.
